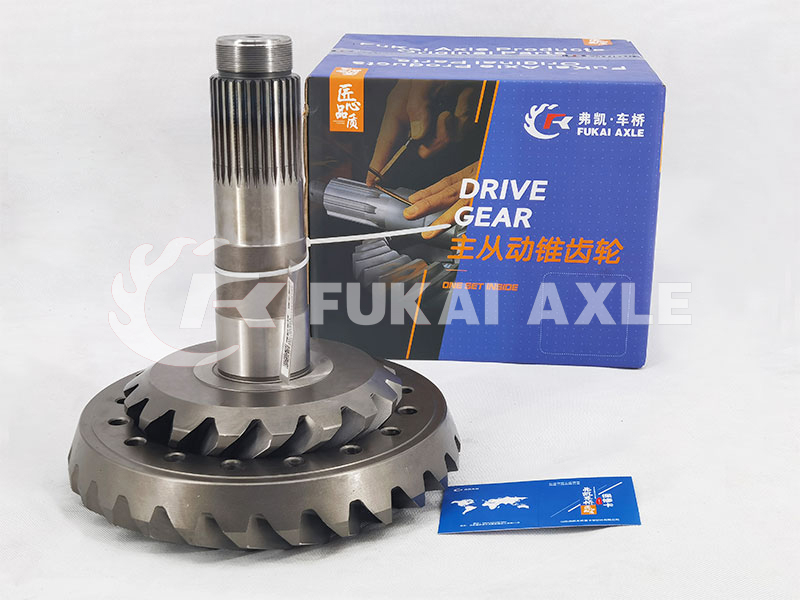

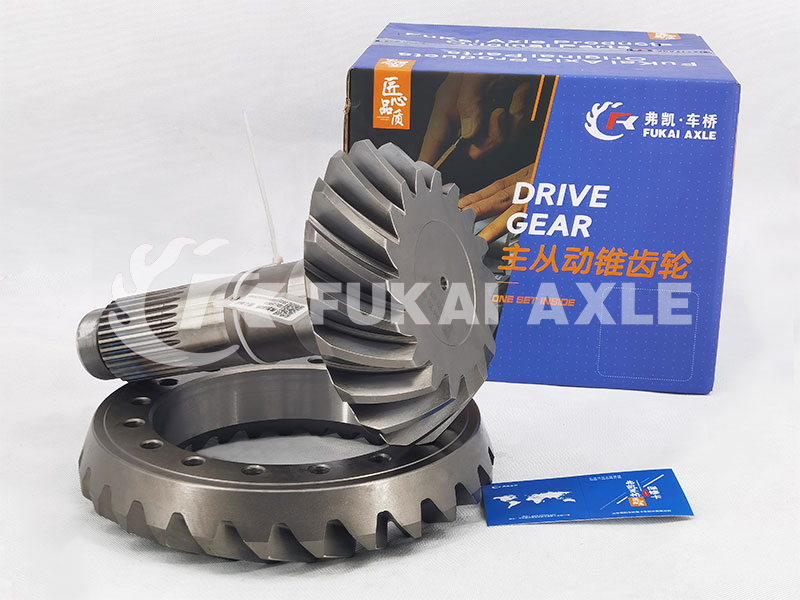

Middle Axle Bevel Gear for Shacman Delong Hande Man Truck Spare Parts 81.35199.6524

Middle Axle Bevel Gear for Shacman Delong Hande Man Truck Spare Parts 81.35199.6524

Working principle of basin angle teeth:

The single-stage reducer is a driving vertebral gear (commonly known as an angle tooth), and a slave basin angle tooth. The driving vertebral gear is connected to the transmission shaft, rotates clockwise, and the slave basin angle tooth is attached to its right side, and the meshing point rotates downward with the The wheels move in the same direction. Since the diameter of the driving bevel gear is small and the diameter of the basin angle teeth is large, the deceleration function is achieved.

The two-stage reducer has an intermediate transition gear. The left side of the driving cone gear meshes with the bevel gear part of the intermediate gear. The basin angle gear has a small diameter spur gear coaxially, and the spur gear meshes with the driven gear. In this way, the intermediate gear rotates backward and the driven gear rotates forward. There are two levels of deceleration process in the middle.

Because double-stage reduction increases the volume of the axle, it was mainly used in the past to match vehicles with low engine power, and was mainly used in low-speed and high-torque engineering machinery.

In a two-stage main reducer, if the second stage deceleration is performed near the wheels and actually constitutes an independent component at the two wheels, it is called a wheel reducer. The advantage of this is that it can reduce the torque transmitted by the half shaft, which is beneficial to reducing the size and mass of the half shaft. The wheel reducer can be of planetary gear type, or it can be composed of a pair of cylindrical gear pairs. When using a cylindrical gear pair for wheel speed reduction, the up and down positional relationship between the wheel axis and the axle shaft can be changed by adjusting the mutual positions of the two gears. This type of axle is called a portal axle and is often used in cars that have special requirements for the height and position of the axle.

According to the transmission ratio of the main reducer, it can be divided into two types: single-speed type and double-speed type. Domestic cars basically use a single-speed main reducer with a fixed transmission ratio. On the two-speed main reducer, there are two transmission ratios for selection. This main reducer actually plays the role of an auxiliary transmission.

Basic Info.

Main certification of bevel gear pair:

(1) Passed ISO/TS16949:2009 quality management system certification.

(2) Passed ISO/IEC17025:2005 certification.

(3) Certified by National Laboratory Accreditation Committee.

(4) "100 Auto Parts Suppliers" in China.

(5) China Machinery Top 500.

(6) National first-class measurement enterprise.

(7) National first-class physical and chemical enterprise.

Q1. What is your terms of packing?

We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.

Q2. What is your sample policy?

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. What are your brand agency conditions and advantages?

After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.

Q4. How to guarantee your after-sales service?

Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.

Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.

Q5. How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter who they are.

Q6. What is your terms of payment?

By TT or LC. We'll show you the photos of the products and packages before you pay the balance.

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Certification
