Power Steering Assembly For Sinotruk Howo Truck Spare Parts WG9925477132

Basic Info.

Product selling point

(1) Applicable front axle load: 10000KG

(2) Booster cylinder bore: 110mm

(3) Maximum working pressure: 15MPa

(4) Recommended oil pump flow: 20-24L/min

(5) Total coils: 5.8 laps

(6) Output angle: ±45°

(7) Input shaft spline: 1x79 ZGN715

(8) Output shaft spline: B25/16＂x48 ZGN738

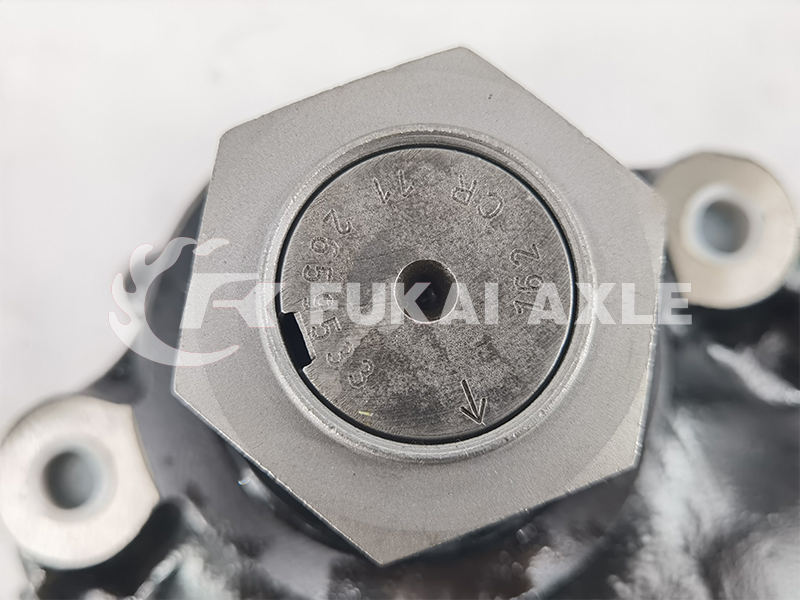

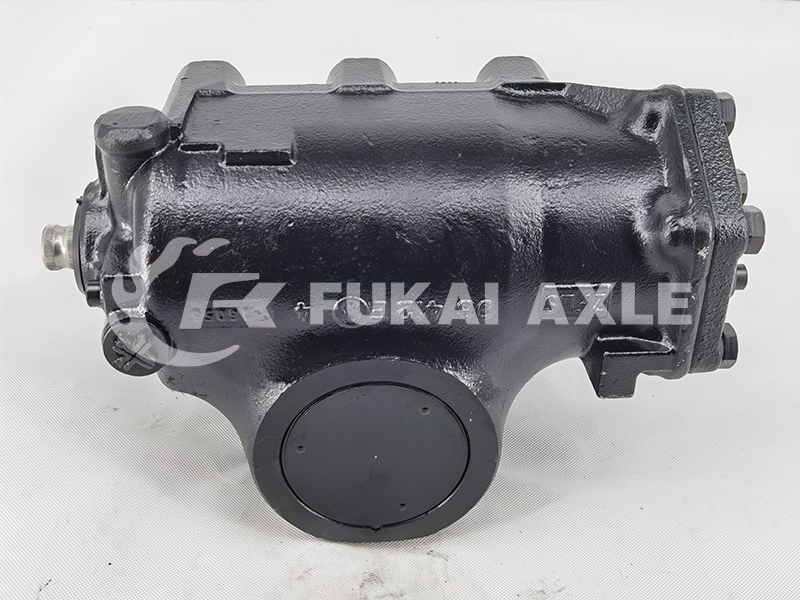

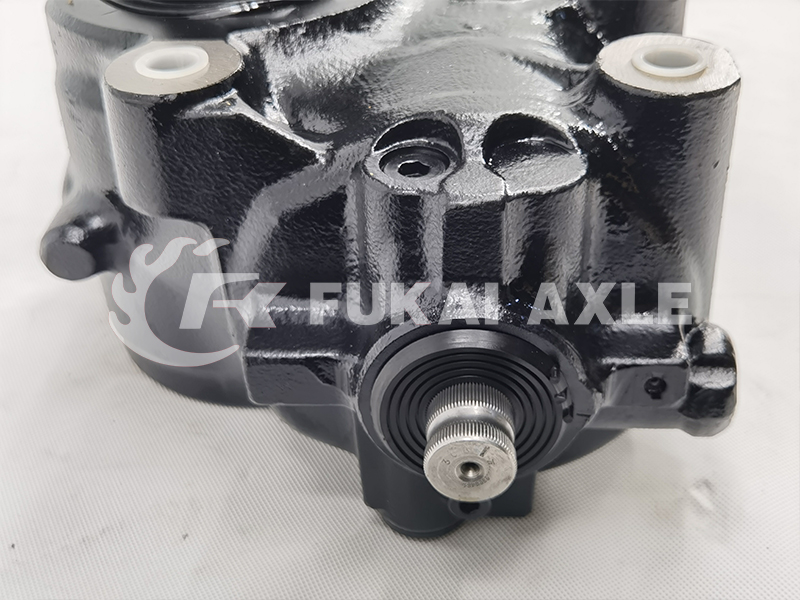

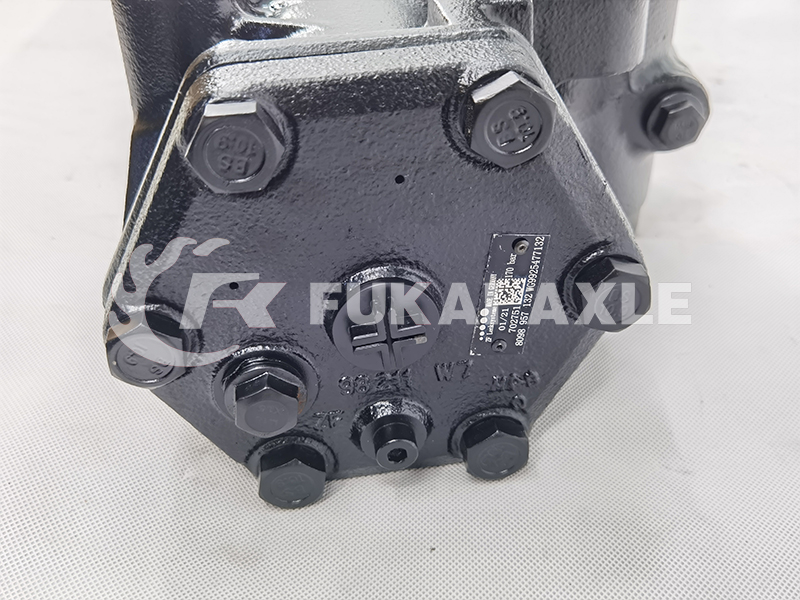

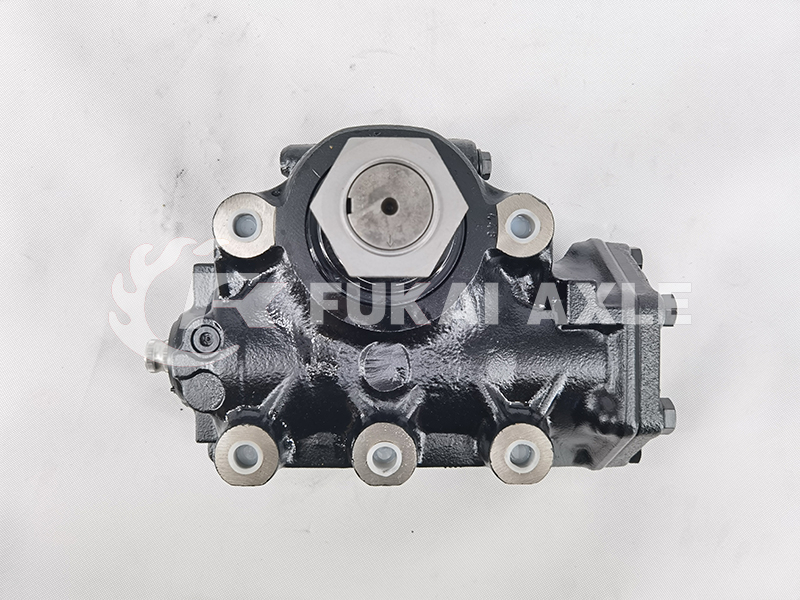

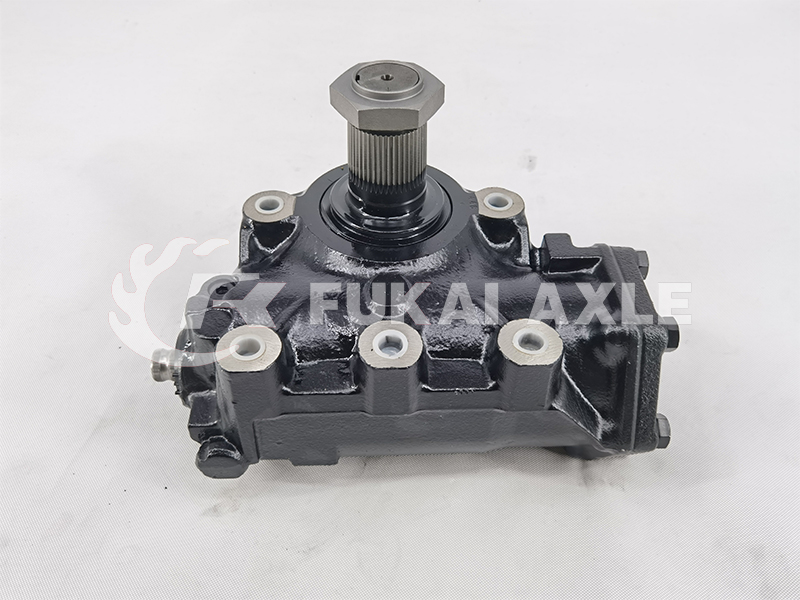

Power Steering Assembly For Sinotruk  Howo Truck Spare Parts WG9925477132

Working principle of Bevel Gear

The steering gear is composed of mechanical part and hydraulic part.

The actual steering is completed by the common action of mechanical and hydraulic parts. The purpose of the mechanical part is to transfer the force from the vehicle steering wheel according to the correct route, that is, input shaft → steering screw → steering nut → steering arm shaft and decelerate. The purpose of the hydraulic part is to make the operation of the steering wheel light and flexible and improve the operation stability.

Briefly describe the mechanical principle: the steering force applied on the steering wheel is transmitted to the input shaft (valve core) in the steering screw assembly through the steering transmission shaft. Through the ball screw pair between the steering screw and the steering nut, the left and right rotary motion of the input shaft and the steering screw is transformed into the reciprocating linear motion of the steering nut; Then, through the rack tooth fan pair between the steering nut and the output shaft, the reciprocating linear motion of the steering nut is transformed into the forward and reverse rotation of the output shaft, and the steering arm (vertical arm) swings back and forth, so as to realize the left and right steering of the vehicle through the horizontal tie rod system.

Hydraulic principle: the main components of automotive power steering hydraulic system include: power steering gear (rotary valve, oil cylinder), steering oil pump, oil storage tank and oil pipeline. In the left steering gear, when the steering wheel rotates to the right (clockwise), the high-pressure oil flows into the upper chamber of the oil cylinder (above the steering nut) through the control valve. The pressure in the upper chamber is greater than the pressure in the lower chamber, causing the steering nut to go down, which is consistent with the effect of the steering force on the steering wheel, so as to make the steering light and achieve the purpose of hydraulic power assistance.

Q1. What is your terms of packing?

We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.

Q2. What is your sample policy?

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. What are your brand agency conditions and advantages?

After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.

Q4. How to guarantee your after-sales service?

Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.

Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.

Q5. How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter who they are.

Q6. What is your terms of payment?

By TT or LC. We'll show you the photos of the products and packages before you pay the balance.

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
