Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

Basic Info.

Main certification of bevel gear pair:

(1) Passed ISO/TS16949:2009 quality management system certification.

(2) Passed ISO/IEC17025:2005 certification.

(3) Certified by National Laboratory Accreditation Committee.

(4) "100 Auto Parts Suppliers" in China.

(5) China Machinery Top 500.

(6) National first-class measurement enterprise.

(7) National first-class physical and chemical enterprise.

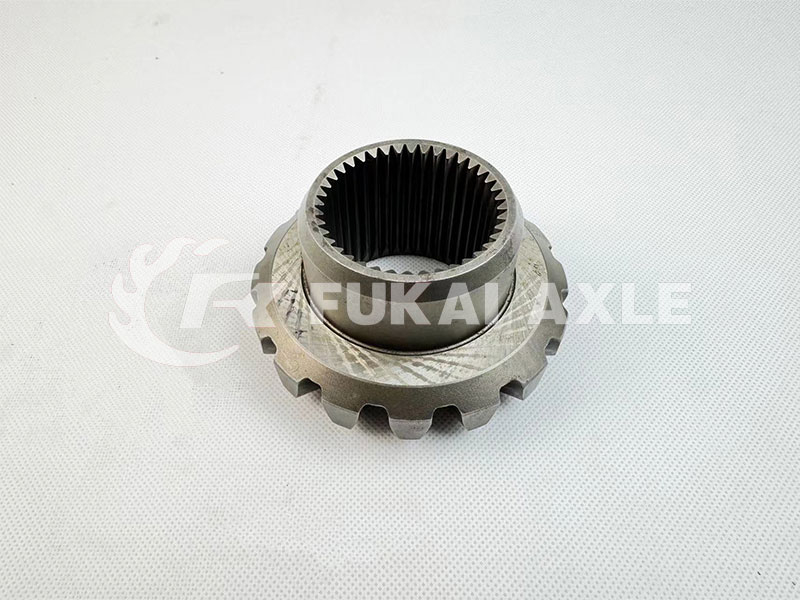

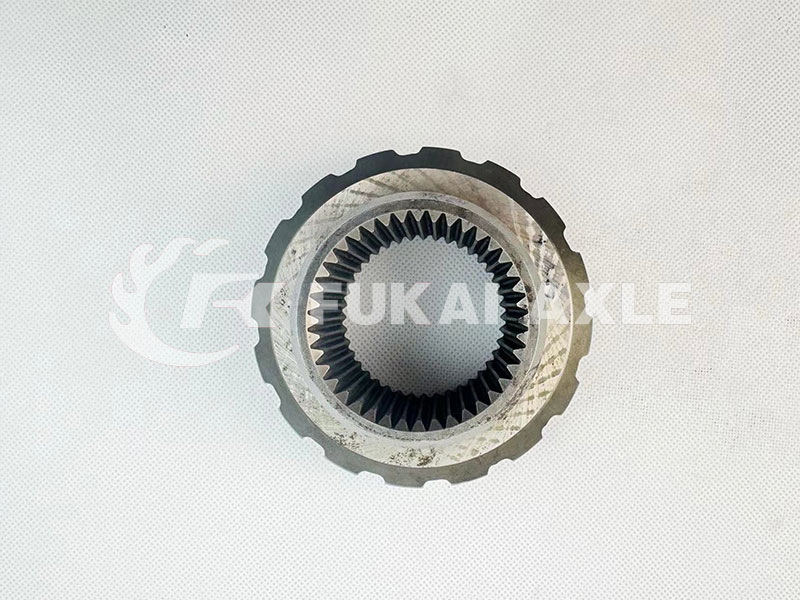

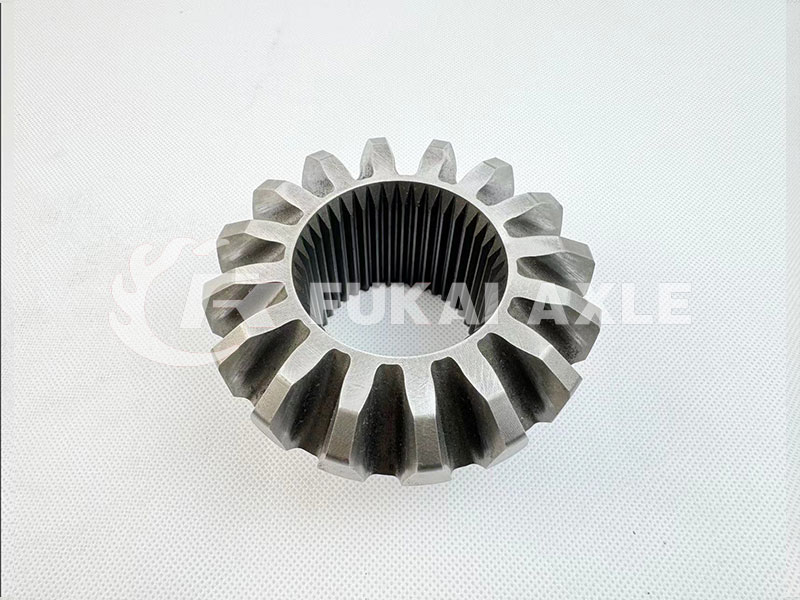

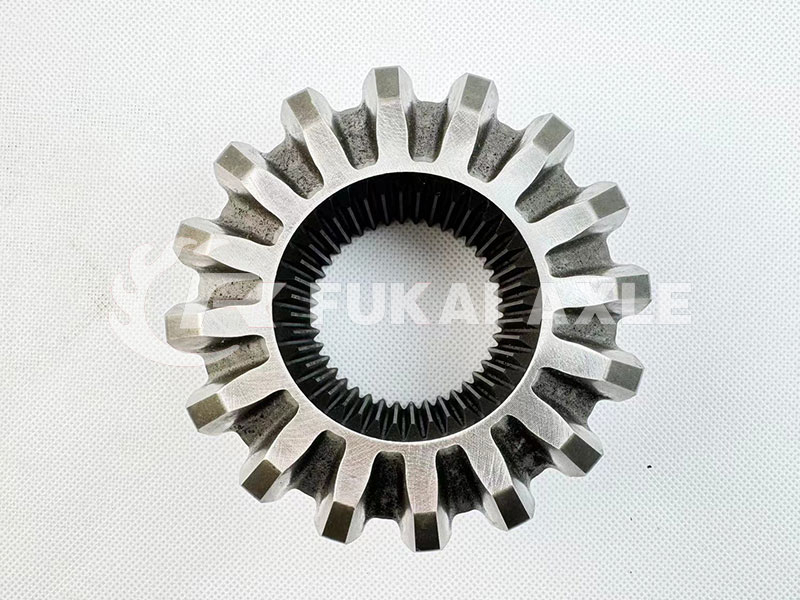

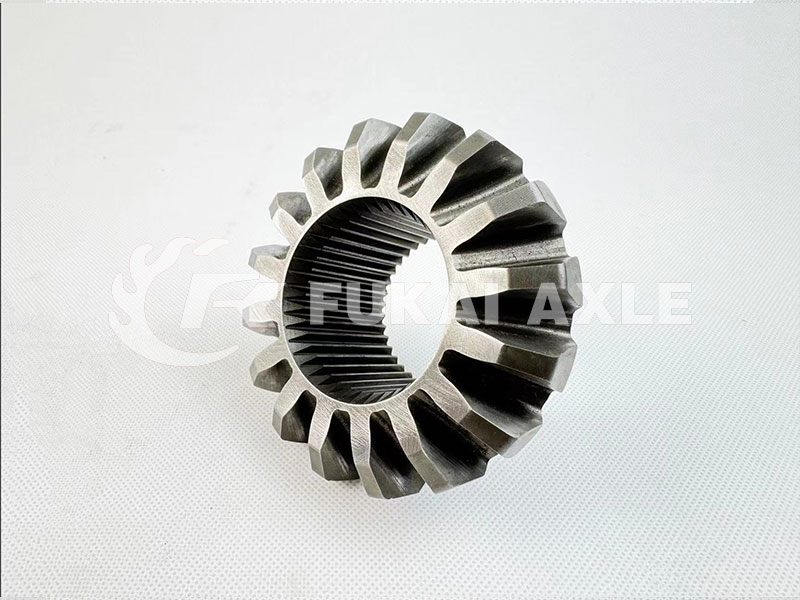

Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

The function of differential side gear:

1. The function of the differential is first to change the direction of power transmission and transmit power to the wheels on both sides through the half shafts. When the vehicle turns, the half shafts on both sides automatically rotate at different speeds so that the wheels roll as much as possible. Performing unequal distance movements reduces the resistance when turning and reduces tire wear.

2. The planetary teeth in the differential only rotate around the side gears. At this time, the speeds of the wheels on both sides are equal, the differential does not work, and the vehicle is traveling in a straight line.

3. The materials of side gears are generally alloy structural steel. Different models are different, and the steel materials are different in high, medium and low grades.

4. The half shaft is also called the drive axle. The half shaft is a solid shaft that transmits torque between the differential and the drive wheel. Its inner end is generally connected to the side shaft gear through splines, and the outer end is connected to the wheel hub.

5. The half-shafts commonly used in modern automobiles are divided into two types: full-floating and semi-floating according to their different support types.

6. The fully floating half shaft only transmits torque and does not bear any reaction force or bending moment, so it is widely used in various types of cars. The fully floating half-shaft is easy to disassemble and assemble. You only need to unscrew the bolts on the flange of the half-shaft to pull out the half-shaft, while the wheels and axle housing can still support the car, making car maintenance easier.

7. The semi-floating half shaft not only transmits torque but also bears all reaction forces and bending moments. Its support structure is simple and the cost is low, so it is widely used in various types of cars with small reaction bending moments. However, this kind of half-shaft support is troublesome to remove, and if the half-shaft breaks while the car is driving, it may easily cause the risk of the wheel flying off.

Packaging & Shipping

Main Certification

(1) Accessory products of the truck, use 20CrMmti material.

(2) Heat treatment and tempering, high gear root strength, stronger impact resistance.

(3) Multi-purpose furnace carburizing processing, fine grinding processing technology, effectively reducing noise.

(4) Test product one by one, and inspect each product on delivery to ensure 100% quality stability of the product.

(5) The unified brand carton, inner bag and integral foam packaging, which is strong and beautiful.

Q1. What is your terms of packing?

We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.

Q2. What is your sample policy?

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. What are your brand agency conditions and advantages?

After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.

Q4. How to guarantee your after-sales service?

Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.

Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.

Q5. How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter who they are.

Q6. What is your terms of payment?

By TT or LC. We'll show you the photos of the products and packages before you pay the balance.

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
