Product Description

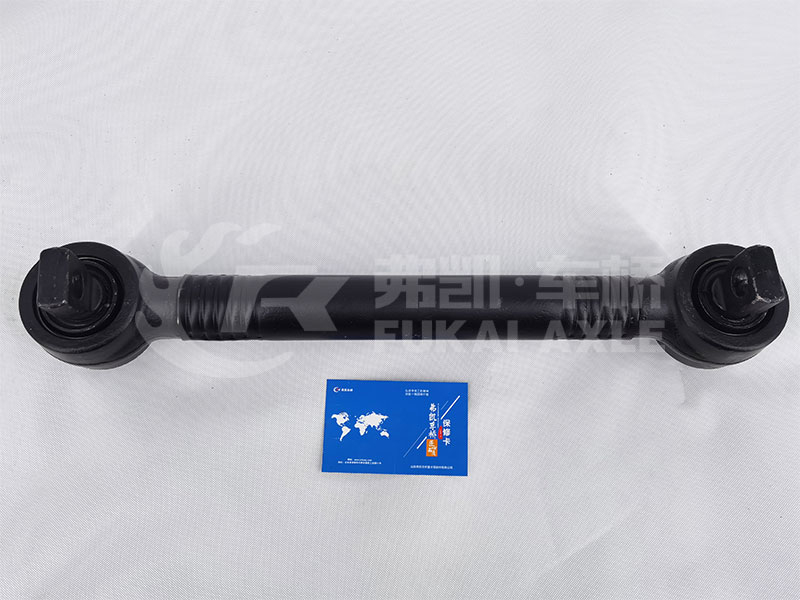

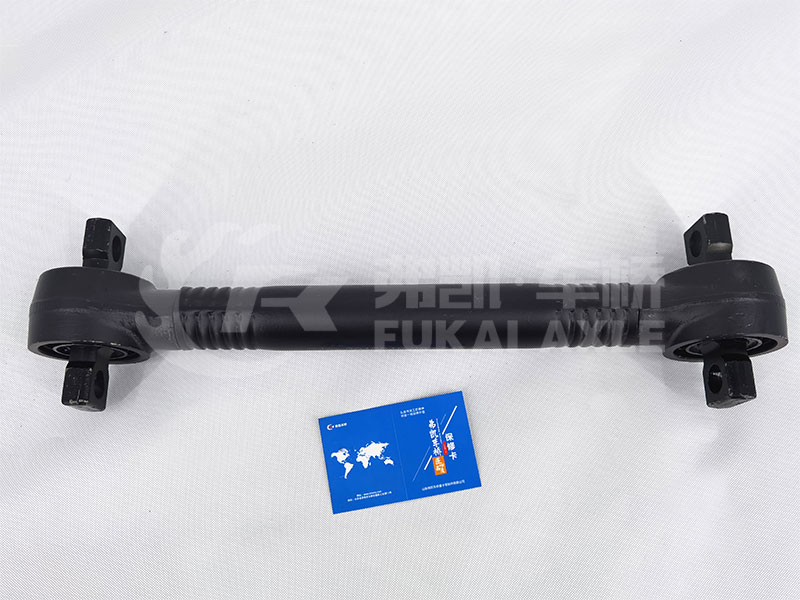

Thrust Rod Assembly for FAW Jiefang Aowei Truck Spare Parts 2919010-260
|  |
Function and working principle of thrust rod:
The thrust rod is mainly applied to single axle or dual rear axle heavy vehicles with suspension for trucks or buses, connecting the frame and axle. Its main purpose is to overcome the fact that leaf springs can only transmit vertical force and lateral force surfaces cannot transmit traction, braking force, and corresponding reaction moments.
At present, the most commonly used thrust rod is the I-type thrust rod applied to the Steyr chassis. The V-shaped thrust rod has a good lateral positioning effect, which greatly reduces the lateral displacement distance of the drive axle compared to traditional suspensions.
Overview
Basic Info.

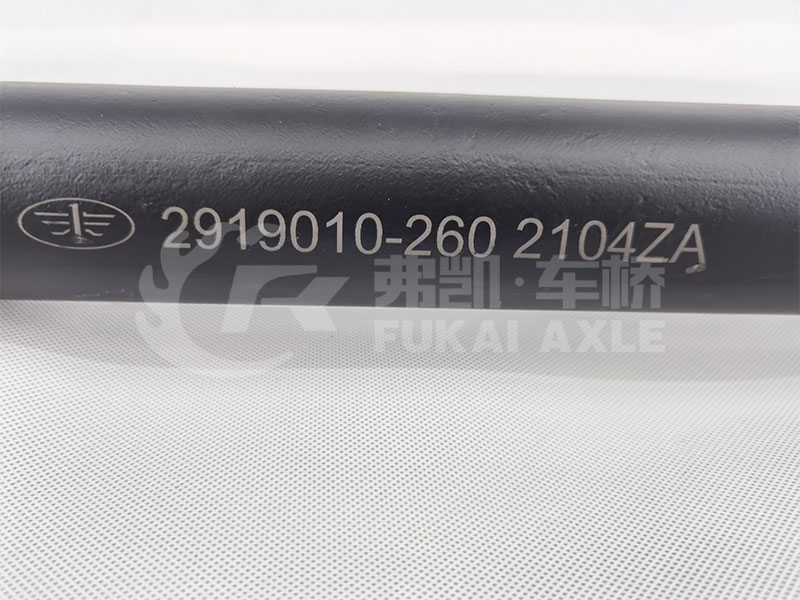

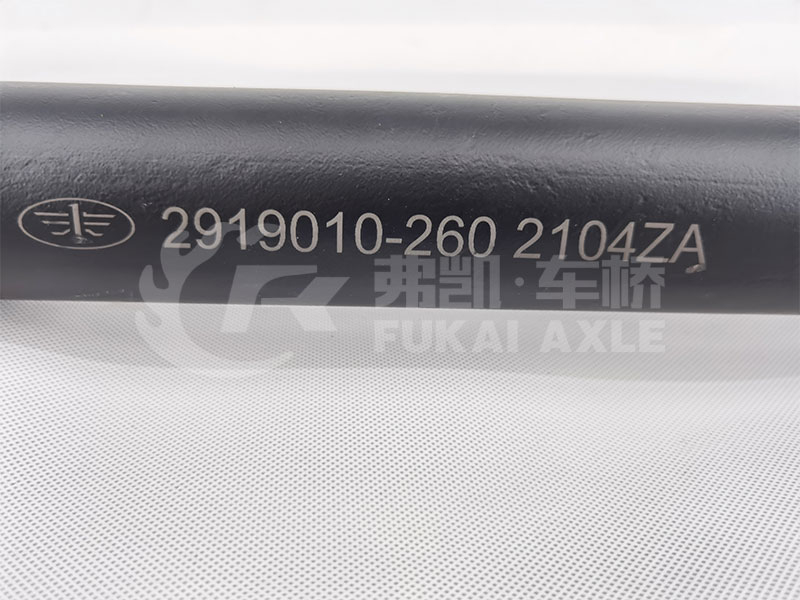

| Model NO. | 2919010-260 | Quality | High Quality; OEM Original |
| Size | OEM Standard Size | Part Name | Thrust Rod Assembly |
| MOQ | 1 PCS | Automatic | Automatic |
| Sample | Avaiblable | Main Market | Worldwide |
| Axle | FAW Jiefang | Condition | New |
| Certification | ISO9001 | Transport Package | Standard Package |
| Specification | Standard Component | Origin | China |
Product selling point
(1) Adopt thickened and thickened (improved from 50mm to 54/60mm) high-quality seamless steel pipes to improve the fatigue resistance of the thrust rod.
(2) The rubber core of the thrust rod is made of high-quality natural rubber, featuring high elasticity, high cushioning, and fatigue resistance.

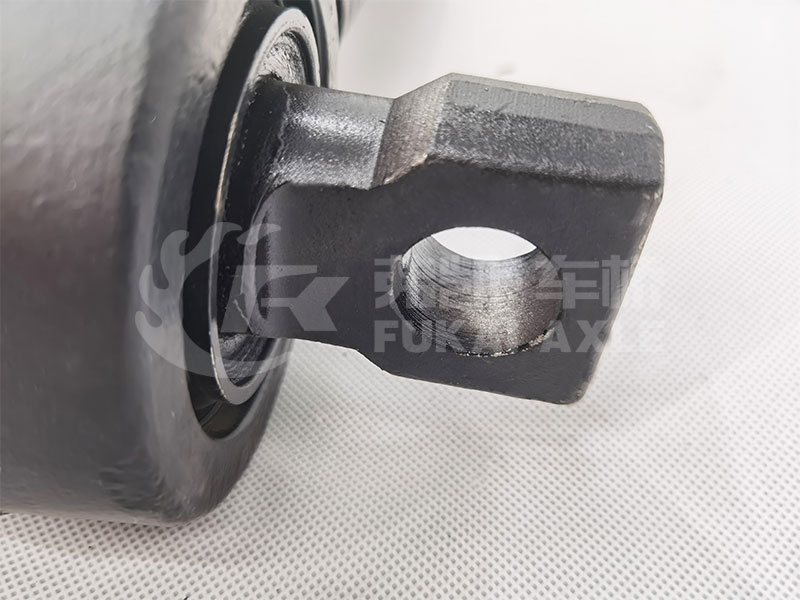

(3) The ball pin is quenched and tempered with 40Cr, with high comprehensive mechanical properties to avoid ball pin fracture.

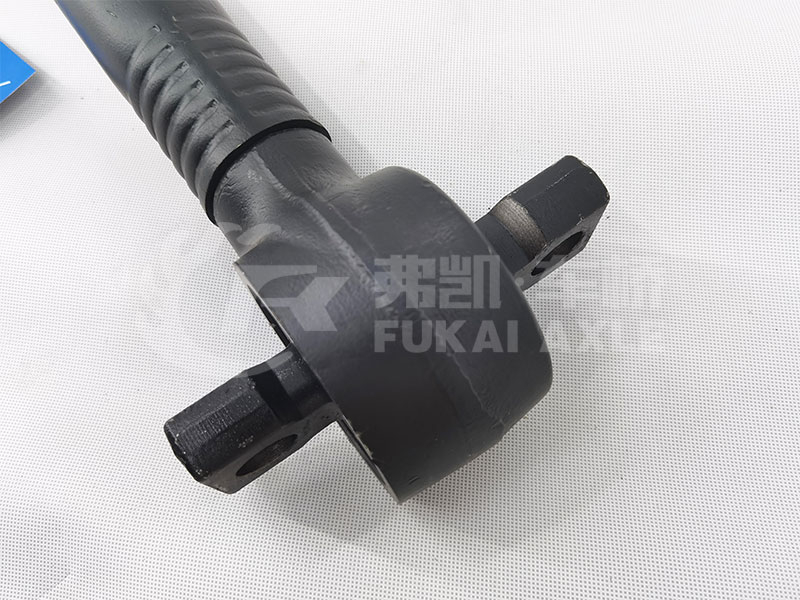

(4) The rubber ends adopt a triangular structure end cap with a cross-section, which optimizes and decomposes the stress situation of the end cap.
(5) The current products are divided into polyurethane, natural rubber, and bearing types, which can be customized according to customer needs.
Common Faults
| NO. | Common faults | Fault Analysis | Improvement scheme of thrust rod |
| 1 | The rubber of the rubber ball pin is peeled off from the ball pin, the metal ball pin rotates and the rubber is extruded. | The adhesion is not up to standard, or the selected adhesive and compound are unreasonable. | Adopt Chemlok hot-vulcanized adhesive, which greatly improves the adhesion between rubber and ball pin. |
| 2 | The rubber of the rubber ball pin is damaged, serious cracks appear on the surface, and a deep gap appears between the rubber and the ball pin framework. | The surface of the ball pin is scratched by foreign matters, or the rubber is naturally aged and cracked. | The rubber core adopts natural rubber, which has better elasticity and fatigue resistance. |
| 3 | The thrust rod is bent and deformed or the rod body is broken. | The stress of the stress bar is too large or fatigue crack occurs, and fracture occurs during use; The ball pin link bolt is loose or the support is broken, resulting in the bending or fracture of the thrust rod; The thrust rod is bent or broken under the action of external objects or external forces. | The load-bearing rod adopts thickened and thickened (from 50 to 54 and 60) high-quality seamless steel pipe, which greatly improves the service life compared with ordinary load-bearing rod. |
| 4 | The ball pin handle of the thrust rod is broken. | The handle is torn due to loose fixing bolts; The fatigue crack or quenching and tempering crack of the ball pin hole causes the fracture of the handle in use. | The ball pin handle of thrust rod is quenched and tempered with 40Cr material, with high comprehensive mechanical performance and high fatigue resistance. |
| 5 | The distance between the left and right rear axles of the vehicle is inconsistent, resulting in accelerated tire wear. | The center distance between the left and right lower thrust rods is inconsistent, or the clearance is too large due to the wear of the ball pin rubber on one side. | The products are produced by the machining center, which guarantees 100% pass rate of the concentricity and center distance of each thrust rod. |
| 6 | Abnormal noise on the rear axle of the vehicle. | The thrust rod is damaged or the rubber of the ball pin is worn, and the ball pin comes out. |
Factory Show
Company advantages
FAQ
Q1. Are you a factory or trading company?
We are a factory integrating research, development, production and sales.
Q2. What are the advantages of your products?
We support product customization to meet customer needs for special products. We can strictly control the products from raw materials to production, processing, product quality inspection, delivery, packaging, etc., and provide customers with high-end products and the most advantageous prices.
Q3. How about products price?
We are a factory, all products are direct sale at factory price. For the same price, we will provide the best quality; for the same quality, we have the most advantageous price.
Q4. What is your terms of packing?
We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.
Q5. How to guarantee your after-sales service?
Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.
Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.
Q6. How can I accurately buy the products I need?
We need accurate product number, If you can't provide product number, you can send us your product picture, or tell us your truck model, engine name plate, and so on. we will
determine exactly what you need products.
Q7. Do you accept third party inspection?
Yes.we do
Q8. How about your delivery time?
Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q9. What are your brand agency conditions and advantages?
After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.
Q10. What is your terms of payment?
By TT or LC. We'll show you the photos of the products and packages before you pay the balance.
