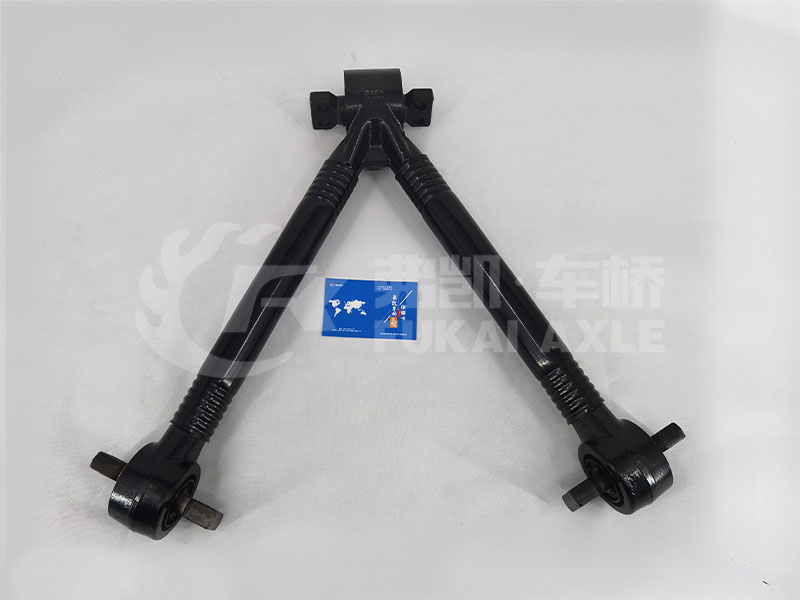

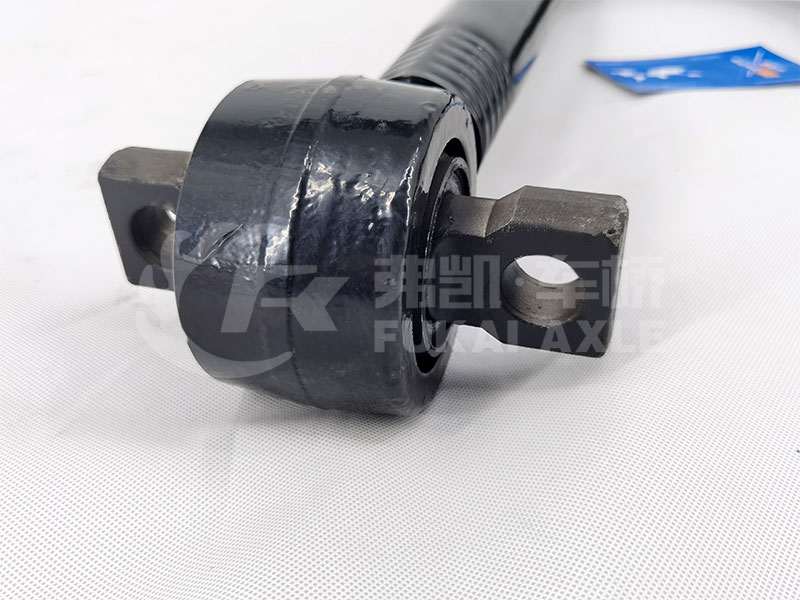

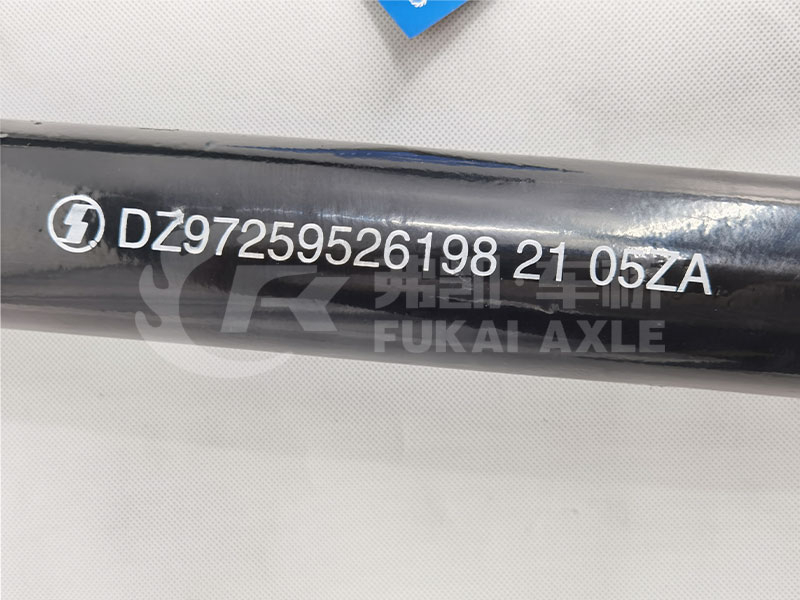

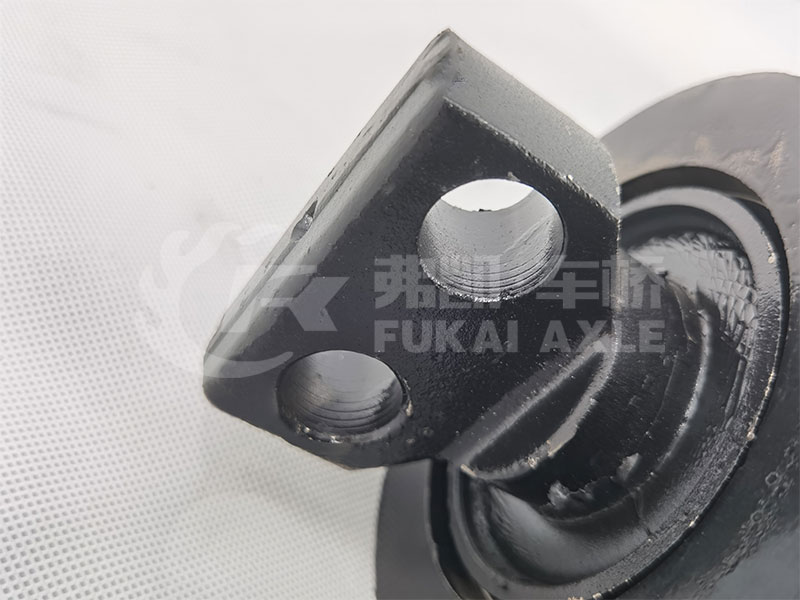

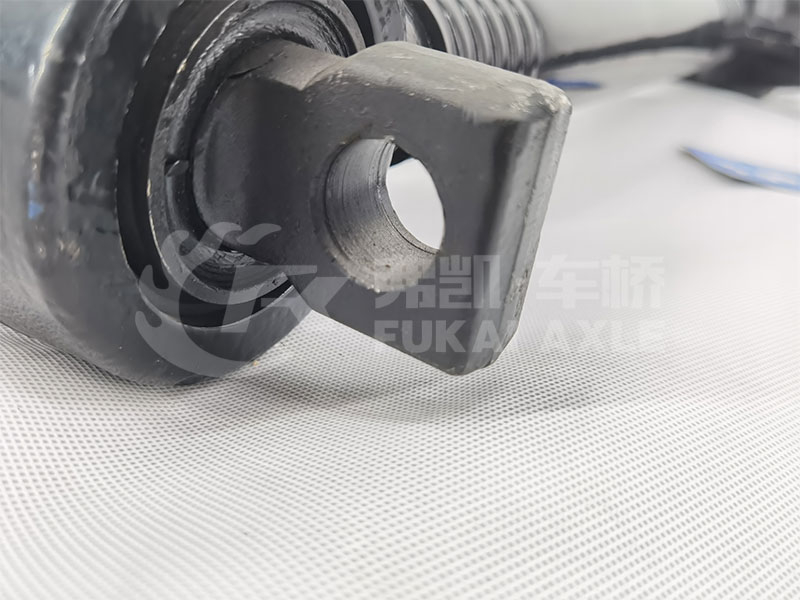

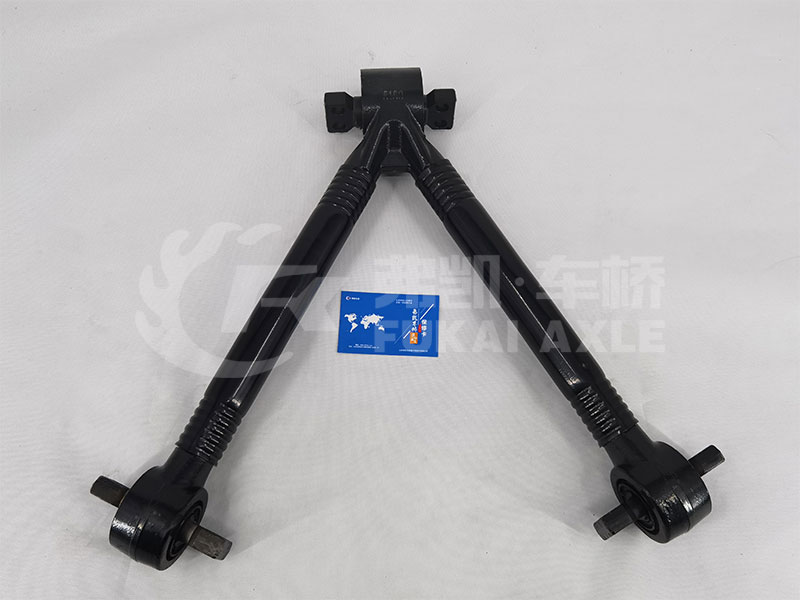

V Stay Thrust Rod for Shacman Delong X3000 Truck Spare Parts Dz97259526198
|  |
The function and working principle of the thrust rod:
Thrust rods are mainly used on single-axle or double-rear-axle heavy-duty vehicles with truck or bus suspensions, connecting the frame and axle. Its purpose is mainly to overcome the fact that leaf springs can only transmit vertical force and lateral force cannot Transmit traction, braking force and their corresponding reaction torque.
The most commonly used thrust rod at present is the I-type thrust rod used in Steyr chassis. The V-shaped thrust rod has good lateral positioning effect, which greatly reduces the lateral movement distance of the drive axle compared with traditional suspension.
Common faults of thrust rods
1. The rubber of the rubber ball pin peels off from the ball pin, the metal ball pin rotates, and the rubber is extruded.
The bonding strength is not up to standard, or the adhesive and rubber selected are unreasonable.
The use of Chemlok hot vulcanization adhesive greatly improves the adhesion between rubber and ball pins.
2. The rubber of the rubber ball pin is damaged, serious cracks appear on the surface, and a deep gap appears between the rubber and the ball pin skeleton.
The surface of the ball pin is scratched by foreign objects, or the rubber ages and cracks naturally.
The rubber core is made of natural rubber, which has better elasticity and fatigue resistance.
3. The thrust rod is bent and deformed or the shaft is broken.
The force-bearing rod is overstressed or fatigue cracks occur, and breaks during use; the ball pin link bolt is loose or the bracket is broken, causing the thrust rod to bend or break; the thrust rod bends or breaks due to the action of foreign objects or external forces.
The force-bearing rod is made of thickened and thickened (from 50 thick to 54 thick and 60 thick) high-quality seamless steel pipes, which greatly improves the service life compared with ordinary force-bearing rods.
4. The ball pin handle of the thrust rod is broken.
Loose fixing bolts cause the handle to tear; fatigue cracks or quenching and tempering cracks in the ball pin hole cause the handle to break during use.
The thrust rod ball pin handle is made of 40Cr tempered material, which has high comprehensive mechanical properties and high fatigue resistance.
5. The distance between the left and right rear axles of the vehicle is inconsistent, causing tire damage.
The center distance between the left and right lower thrust rods is inconsistent in length, or the ball pin rubber on one side is worn, causing the gap to be too large. The products are produced by machining centers to ensure 100% pass rate for the concentricity and center distance of each thrust rod.
6. There is abnormal noise from the rear axle of the vehicle.
The thrust rod is damaged or the ball pin rubber is worn, and the ball pin comes out.
Overview
Basic Info.
| Model NO. | Dz97259526198 | Quality | High Quality; OEM Original |
| Size | OEM Standard Size | Part Name | V Stay Thrust Rod |
| MOQ | 1 PCS | Automatic | Automatic |
| Sample | Avaiblable | Main Market | Worldwide |
| Axle | Shacman Delong | Condition | New |
| Certification | ISO9001 | Transport Package | Standard Package |
| Specification | Standard Component | Origin | China |
Product selling point
(1) Adopt thickened and thickened (improved from 50mm to 54/60mm) high-quality seamless steel pipes to improve the fatigue resistance of the thrust rod.
(2) The rubber core of the thrust rod is made of high-quality natural rubber, featuring high elasticity, high cushioning, and fatigue resistance.
(3) The ball pin is quenched and tempered with 40Cr, with high comprehensive mechanical properties to avoid ball pin fracture.
(4) The rubber ends adopt a triangular structure end cap with a cross-section, which optimizes and decomposes the stress situation of the end cap.
(5) The current products are divided into polyurethane, natural rubber, and bearing types, which can be customized according to customer needs.
