Product Description

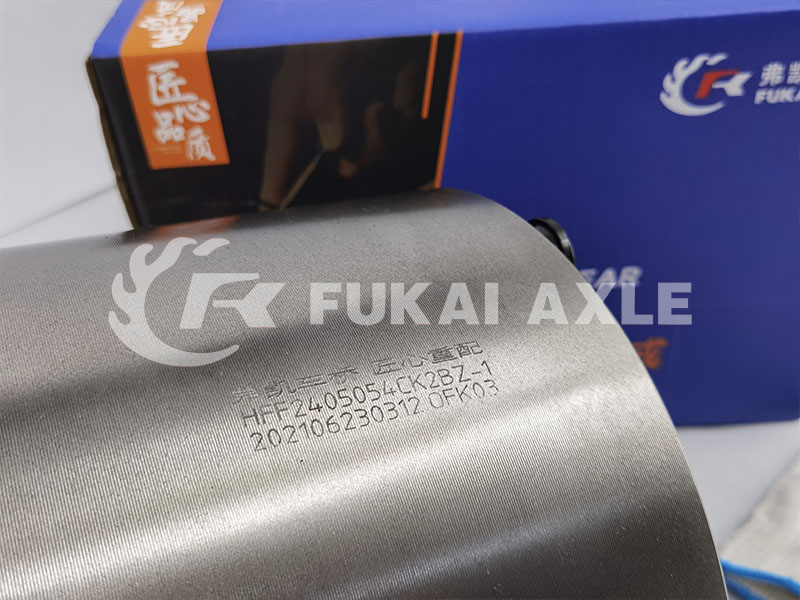

| Model NO. | HFF2405054CK2BZ-1 | Application | Foton Auman |
| Height | 282.5 mm | Internal Diameter | 264 mm |
| Number of Sun Gear Teeth | Internal Teeth: 40 Teeth; External Teeth: 19 Teeth | Number of Teeth of Internal Ring Gear | 56 Teeth |
| Number of Teeth of Planetary Gear | 18 Teeth | Speed Ratio | 3.947 |
| Origin | China | Sample | Avaiblable |
(1) The accuracy of the oil seal, seam, steel ring position, etc. is 1/3 higher than that of the market wheel rim (for example, the tolerance of Fukai brand oil seal is 0~8 wires, and the tolerance of ordinary wheel edges is 0~15 wires).
(2) Drill holes on the surface of the disk through the reamer, and check the position of the tire hole with the inspection tool disk to ensure the consistency of the hole diameter and perfect concentricity.
(3) In order to prevent oil leakage of 1/10,000, the shaft hole of the machining center adopts the processing technology of rough boring and fine boring; the 10 threaded holes at the bottom of the wheel shell are all blind holes (most of the wheel edges on the market for through holes).
(4) When drilling the legs of the wheel-side planetary frame, in order to prevent the angle from becoming skewed when the hole is deep, which will reduce the service life of the planetary frame after the assembly of the wheel-side assembly, the wheel-side shell of the Fukai brand is firstly placed in the machining center. The drilling is positioned at 2.5mm, and then the vertical drilling is completed (most brand planetary frames are directly made at one time).
(5) After the wheel edge is formed, it is polished and polished one by one with a metallographic instrument, and inspected individually to ensure the stability of the material of each product.
(6) Wheelside assembly The optional wheelside planetary gears, planetary shafts, planetary spacers, needle roller bearings, sun wheel spacers, and wheelside screws are all products of the main engine supporting factory, with fine appearance and stable and reliable quality.

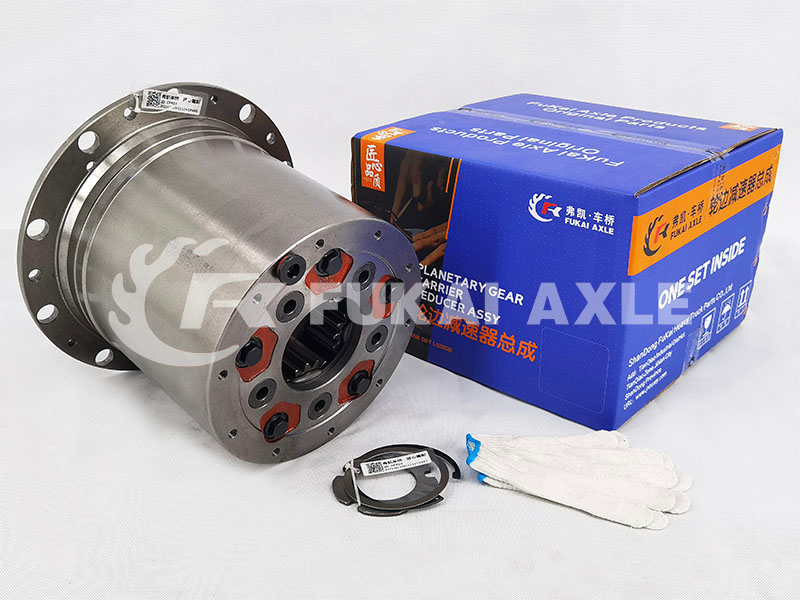

Fukai brand wheel assembly is equipped with repair kits required for maintenance (including retaining ring, adjusting gasket, wheel oil plug, sun wheel gasket, gloves, etc.).
The wheel reducer is mainly composed of sun gear, planetary gear, ring gear and planetary gear carrier. Generally, the sun gear of the driving part is connected with the half shaft, the planetary gear carrier of the passive part is connected with the wheel, and the ring gear is connected with the axle housing. The wheel reducer is used to increase the driving force matching of the car to meet or modify the force of the entire transmission system. At present, the wheel reducer is a set of gear transmission device with speed reduction and torque increase to meet the matching needs of the whole transmission system. The power is transmitted from the engine to the main reducer of the front and rear axle through the clutch, transmission and transfer case, and then from the output end of the main reducer to the wheel reducer and wheels to drive the vehicle. In this process, the working principle of the wheel reducer is to transfer the speed and torque transmitted by the main reducer to the wheels after its speed reduction and torque increase, so the wheels can generate a large driving force under the reaction of ground adhesion. Thus, the stress of each part in front of the wheel reducer is reduced.
Q1.How about price of products?
The price is nogotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
Please provide the exact or approximate quantity, packing details, destination port or special requirements, so we could give you the price accordingly.
Q2.what is the products delivery time?
Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3.Do you test all your goods before delivery?
Yes,we have 100% test before delivery.
Q4.What is your terms of payment?
By TT or We'll show you the photos of the products and packages before you pay the balance.
Q5. Do you accept third party inspection?
Yes.we do
Q6. Are you a factory or trading company?
We are a factory integrating research, development, production and sales.
