Product Description

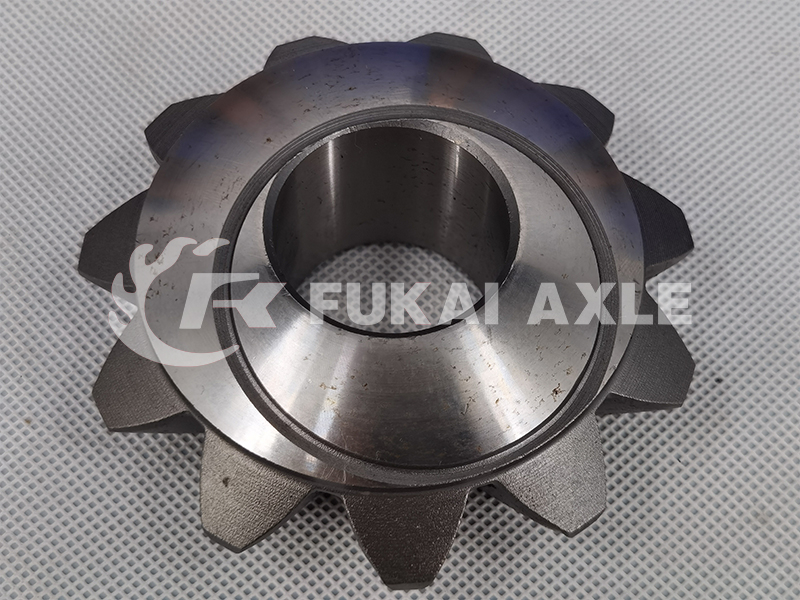

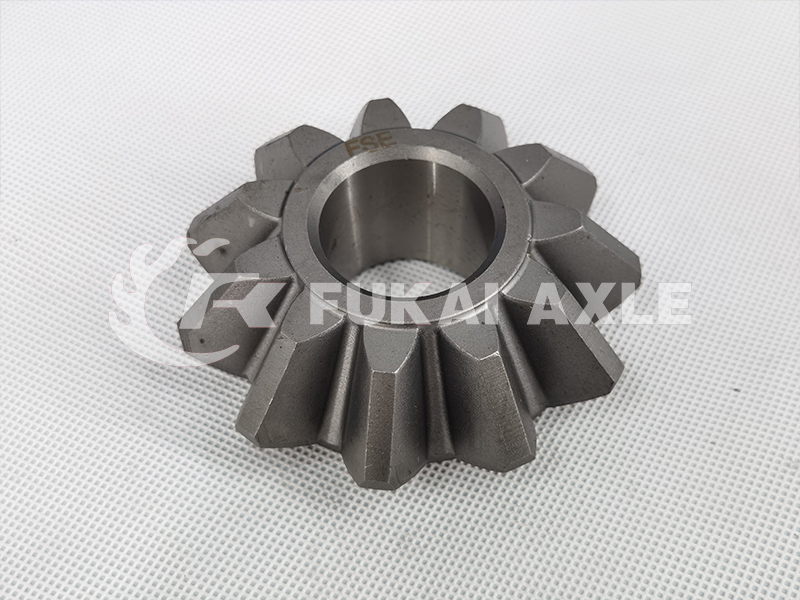

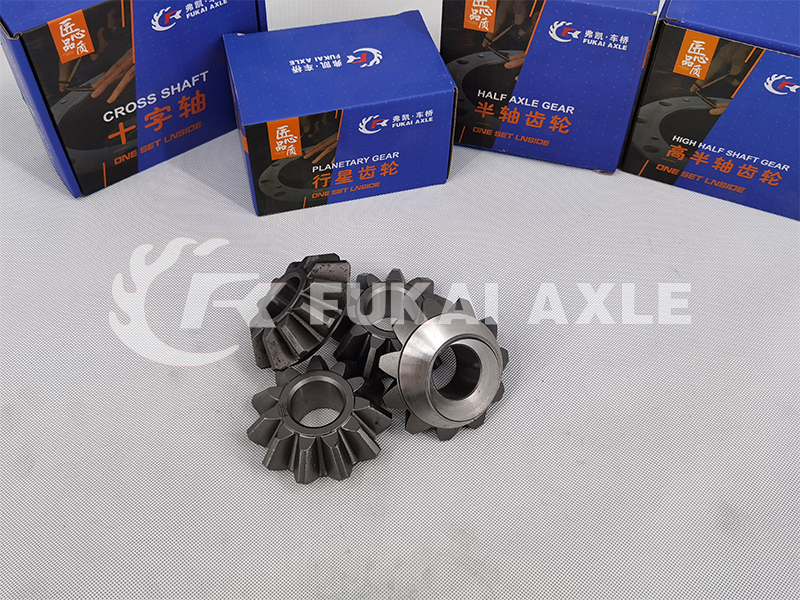

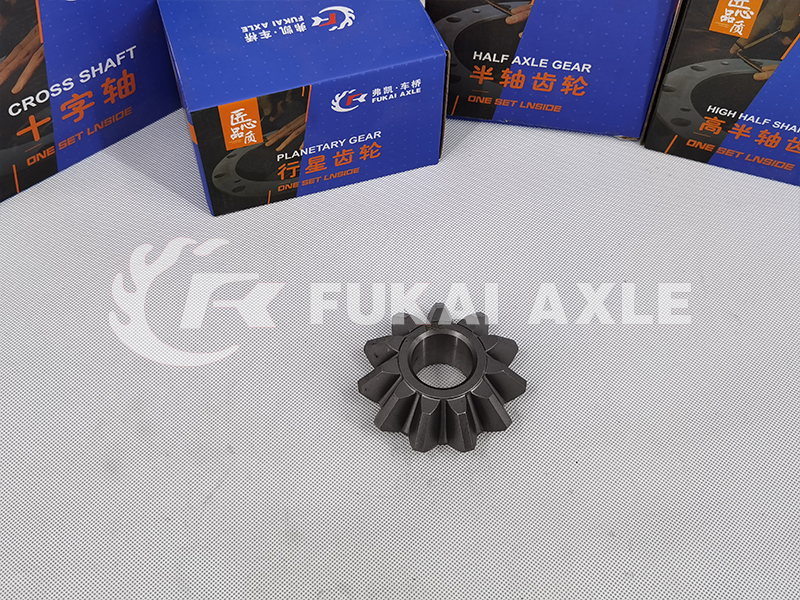

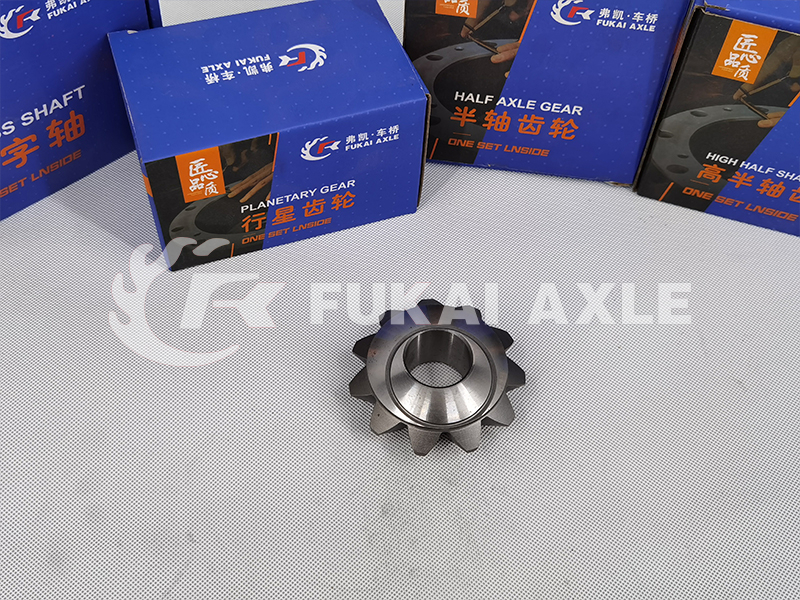

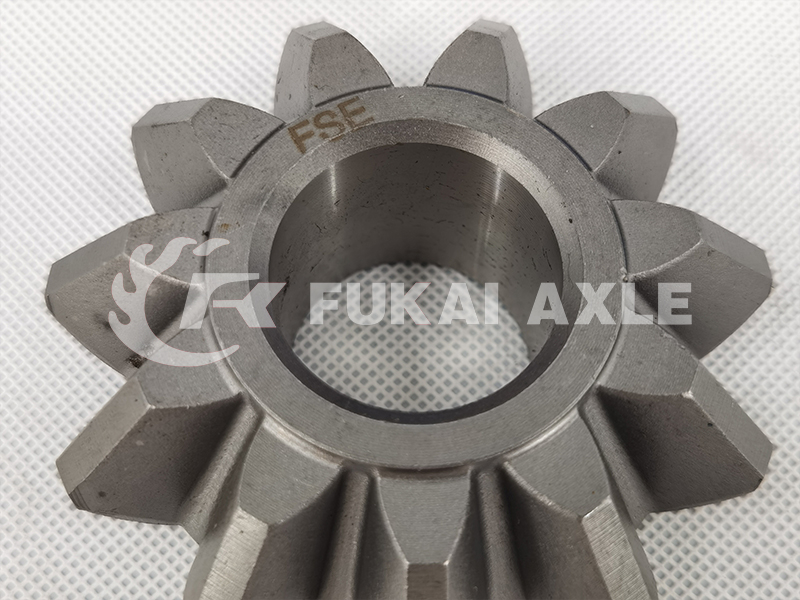

Differential Planetary Gear for Sinotruk HOWO Truck Parts Wg9231320152
The function of the cross axis:
When the car is running straight, the resistance on the drive wheels on both sides is basically equal. The planetary gears in the differential only rotate with the cross shaft (not rotate), pushing the side gears on both sides to drive the two half shafts to rotate at the same speed. Because the outer end of the half shaft is fixed on the wheel hub, the two driving wheels on the wheel hub also rotate at a constant speed. When the car turns, or when the drive wheels on both sides receive different resistance from the ground, through the action of the differential, the torque formed by the resistance is transmitted back to the side gear through the half shaft, forcing the planetary gear to rotate around the cross axis, forming the inner wheel speed. Slows down and the outside wheel speed increases, resulting in the drive wheels on both sides rolling along the ground at different speeds.
Overview
Basic Info.
| Model NO. | Wg9231320152 | Quality | High Quality; OEM Original |
| Size | OEM Standard Size | Part Name | Differential Planetary Gear |
| MOQ | 1 PCS | Automatic | Automatic |
| Sample | Avaiblable | Main Market | Worldwide |
| Axle | Sinotruk | Condition | New |
| Certification | SGS | Transport Package | Standard Package |
| Specification | Standard Component | Origin | China |
| Truck Model | Sinotruk, Shacman, Saic Hongyan, Foton Auman, FAW Jiefang, Dongfeng, European & Japanese Truck Series, North BENZ( BEIBEN), JAC, etc. | |
| Product catalogue | Axle | Wheel Assembly |
| Differential Assembly | ||
| Main Reducer Assembly | ||
| Inner Ring Gear& Bracket | ||
| Basin Angle Gear/ Bevel Gear | ||
| Axle Shaft/ Half Shaft & Through Shaft | ||
| Axle Housing& Axle Assembly | ||
| Steering knuckle & Front Axle | ||
| Gear | ||
| Brake Drum& Wheel Hub | ||
| Flange | ||
| Bearing | ||
| Main Reducer Housing | ||
| Oil Seal Seat | ||
| Nut& Shim Series | ||
| Brake Backing Plate | ||
| Chassis Support Products | Leaf Spring Bracket | |
| Drop Arm Series | ||
| Bracket Series | ||
| Leaf Spring Shackle Series | ||
| Balanced Suspension Series | Balance Shaft Assembly | |
| Balance Shaft Housing | ||
| Axle Spring Seat | ||
| Thrust Rod | ||
| Balance Shaft Parts | ||
| Shock Absorber Series | Shock Absorber | |
| Shock Absorbing Airbag | ||
| Steering System | Power Steering Pump | |
| Power Steering Gear | ||
| Rubber Products | Oil Seal | |
| Rubber Support | ||
| Thrust Rod Rubber Core | ||
| Truck Belt | ||
| Engine support | ||
| Other | ||
| Clutch Series | Clutch Pressure Plate | |
| Clutch Disc | ||
| Flywheel Assembly | ||
| Flywheel Ring Gear | ||
| Adjusting Arm Series | ||
Main certifications:
(1) Passed ISO/TS16949:2009 quality management system certification.
(2) Passed ISO/IEC17025:2005 certification.
(3) Passed the National Laboratory Accreditation Board certification.
(4) China’s “Hundreds of Auto Parts Suppliers”.
(5) Top 500 Chinese Machinery Companies.
(6) National first-level metrology enterprise.
(7) National first-level physical and chemical enterprise.
Factory Show
Company advantages
FAQ
Q1. Are you a factory or trading company?
We are a factory integrating research, development, production and sales.
Q2. What are the advantages of your products?
We support product customization to meet customer needs for special products. We can strictly control the products from raw materials to production, processing, product quality inspection, delivery, packaging, etc., and provide customers with high-end products and the most advantageous prices.
Q3. How about products price?
We are a factory, all products are direct sale at factory price. For the same price, we will provide the best quality; for the same quality, we have the most advantageous price.
Q4. What is your terms of packing?
We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.
Q5. How to guarantee your after-sales service?
Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.
Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.
Q6. How can I accurately buy the products I need?
We need accurate product number, If you can't provide product number, you can send us your product picture, or tell us your truck model, engine name plate, and so on. we will
determine exactly what you need products.
Q7. Do you accept third party inspection?
Yes.we do
Q8. How about your delivery time?
Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q9. What are your brand agency conditions and advantages?
After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.
Q10. What is your terms of payment?
By TT or LC. We'll show you the photos of the products and packages before you pay the balance.
