Product Description

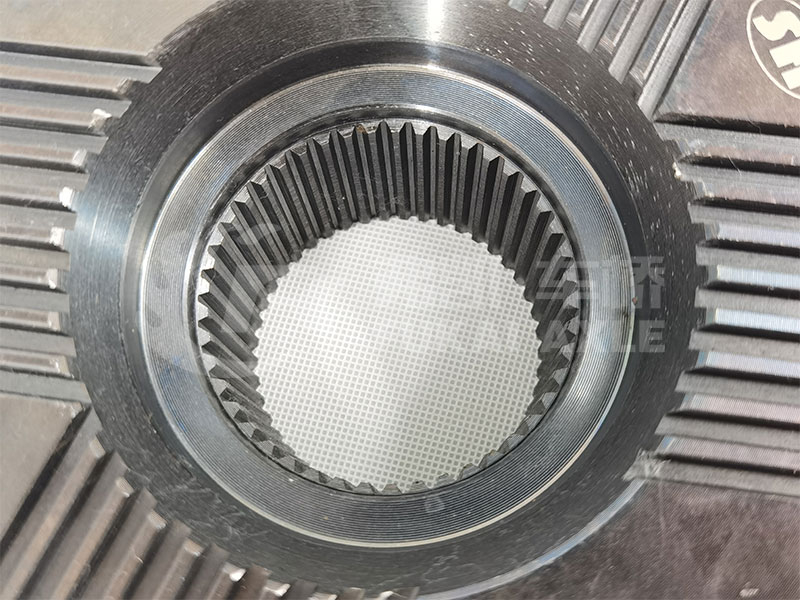

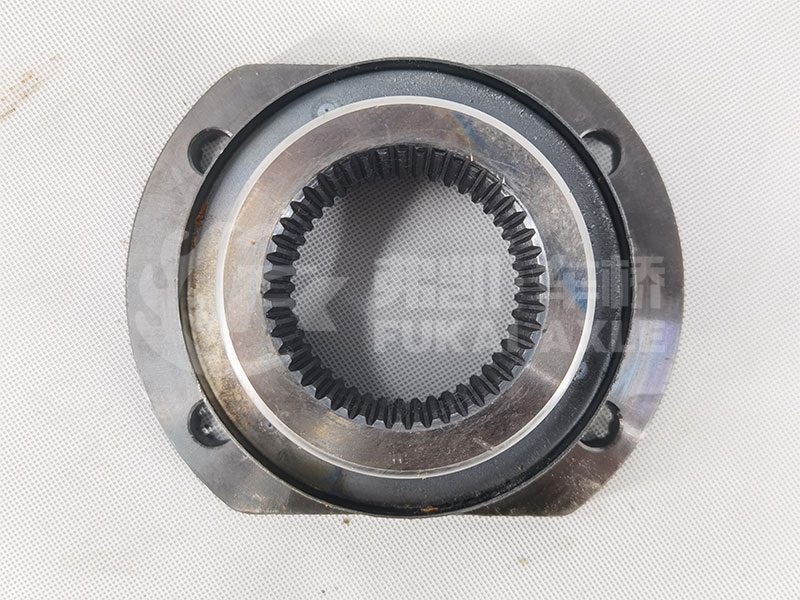

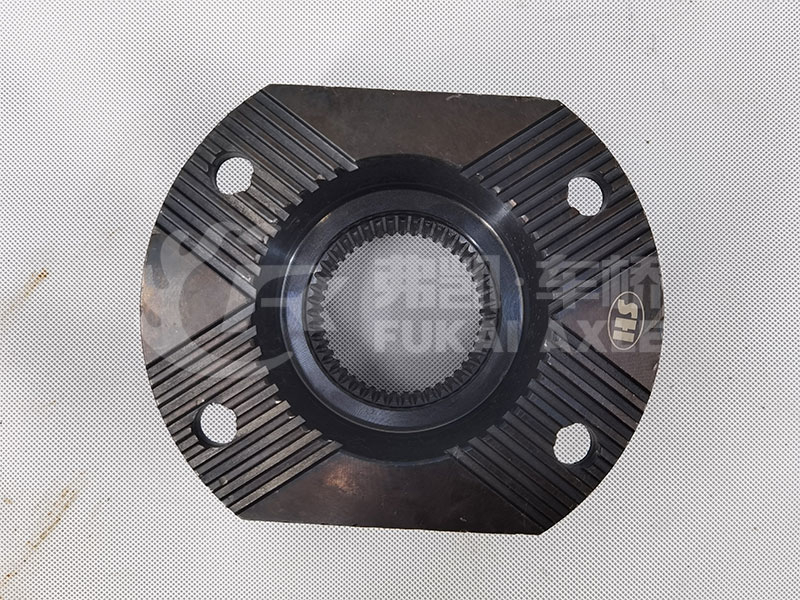

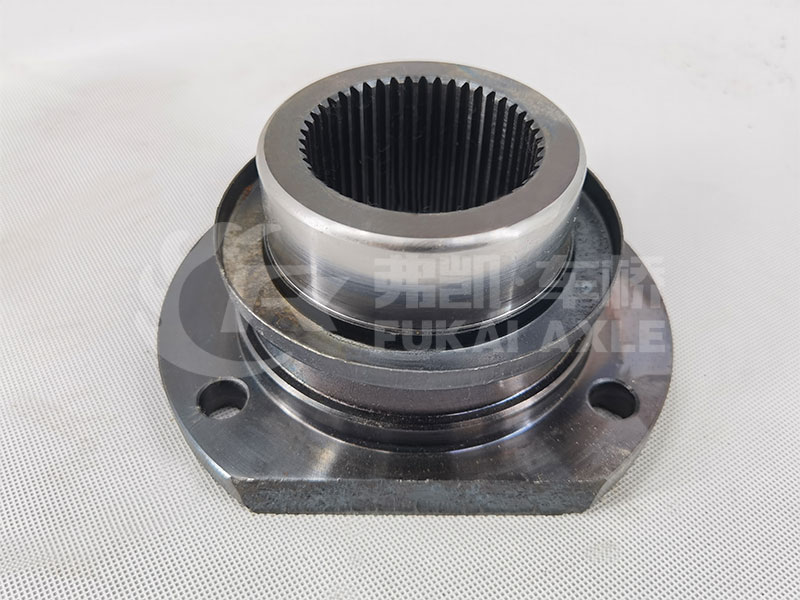

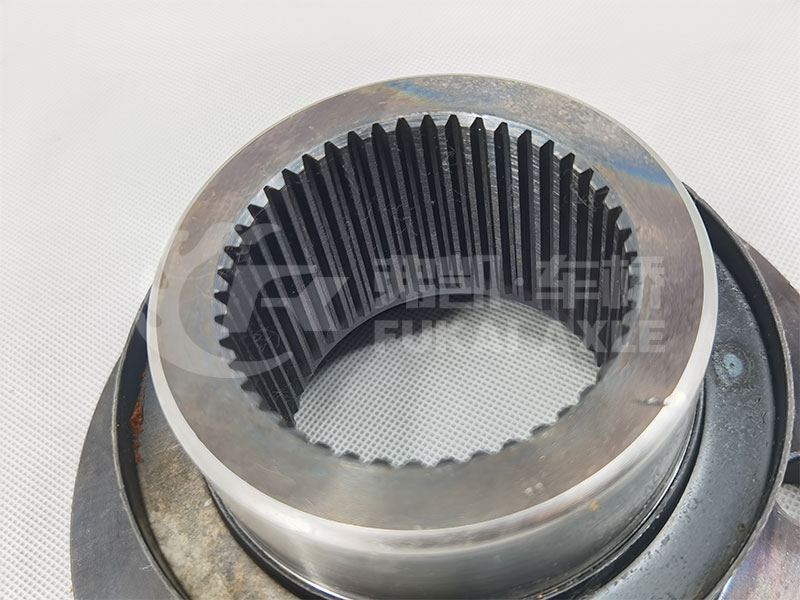

Flange Assembly for FAW Jiefang Auto Truck Spare Parts 2402065-AOE
The function of the through shaft:
Heavy-duty trucks generally have dual rear axles. If they are driven separately, it is necessary to use two drive shafts at the transmission output or add a transfer case, which is bulky and cumbersome. Nowadays, a through-shaft is designed in the middle axle to solve this problem very well. Only one transmission shaft is needed to drive the two rear axles at the same time.
Overview
Basic Info.
| Model NO. | 2402065-AOE | Quality | High Quality; OEM Original |
| Size | OEM Standard Size | Part Name | Flange Assembly |
| MOQ | 1 PCS | Automatic | Automatic |
| Sample | Avaiblable | Main Market | Worldwide |
| Axle | FAW Jiefang Axle Parts | Condition | New |
| Certification | SGS | Transport Package | Standard Package |
| Specification | Standard Component | Origin | China |
| Truck Model | Sinotruk, Shacman, Foton Auman, FAW Jiefang, Dongfeng, Dongfeng Liuqi Balong, North BENZ( BEIBEN), C&C, JAC, etc. | |
| Product catalogue | Axle | Wheel Assembly |
| Differential Assembly | ||
| Main Reducer Assembly | ||
| Inner Ring Gear& Bracket | ||
| Basin Angle Gear/ Bevel Gear | ||
| Axle Shaft/ Half Shaft & Through Shaft | ||
| Axle Housing& Axle Assembly | ||
| Steering knuckle & Front Axle | ||
| Gear | ||
| Brake Drum& Wheel Hub | ||
| Flange | ||
| Bearing | ||
| Main Reducer Housing | ||
| Oil Seal Seat | ||
| Nut& Shim Series | ||
| Brake Backing Plate | ||
| Chassis Support Products | Leaf Spring Bracket | |
| Drop Arm Series | ||
| Bracket Series | ||
| Leaf Spring Shackle Series | ||
| Balanced Suspension Series | Balance Shaft Assembly | |
| Balance Shaft Housing | ||
| Axle Spring Seat | ||
| Thrust Rod | ||
| Balance Shaft Parts | ||
| Shock Absorber Series | Shock Absorber | |
| Shock Absorbing Airbag | ||
| Steering System | Power Steering Pump | |
| Power Steering Gear | ||
| Rubber Products | Oil Seal | |
| Rubber Support | ||
| Thrust Rod Rubber Core | ||
| Truck Belt | ||
| Engine support | ||
| Other | ||
| Clutch Series | Clutch Pressure Plate | |
| Clutch Disc | ||
| Flywheel Assembly | ||
| Flywheel Ring Gear | ||
| Adjusting Arm Series | ||
Product Advantages & Features
(1) The inner teeth of the flange are formed in one step using a vertical broaching machine, with high concentricity.
(2) CNC machine the flange end face to ensure position accuracy.
(3) 45 steel forging, quenching and tempering, high frequency process.
(4) The flange surface is induction quenched, the hardness is HRC55-60, and the depth of the hardened layer is 0.7-1.2.
(5) The oil seal bit has gone through two processes of rough grinding and fine grinding to have a better finish.
(6) Support customization of flanges of various sizes and models.
quality assurance:
Vertical lathe machining center - CNC center - Boring machining center - High-precision grinder - Metallographic inspection - Automated three-coordinate inspection
Factory Show
Company advantages
FAQ
Q1. What is your terms of packing?
We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.
Q2. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. What are your brand agency conditions and advantages?
After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.
Q4. How to guarantee your after-sales service?
Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.
Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.
Q5. How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter who they are.
Q6. What is your terms of payment?
By TT or LC. We'll show you the photos of the products and packages before you pay the balance.
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Certification
