Product Description

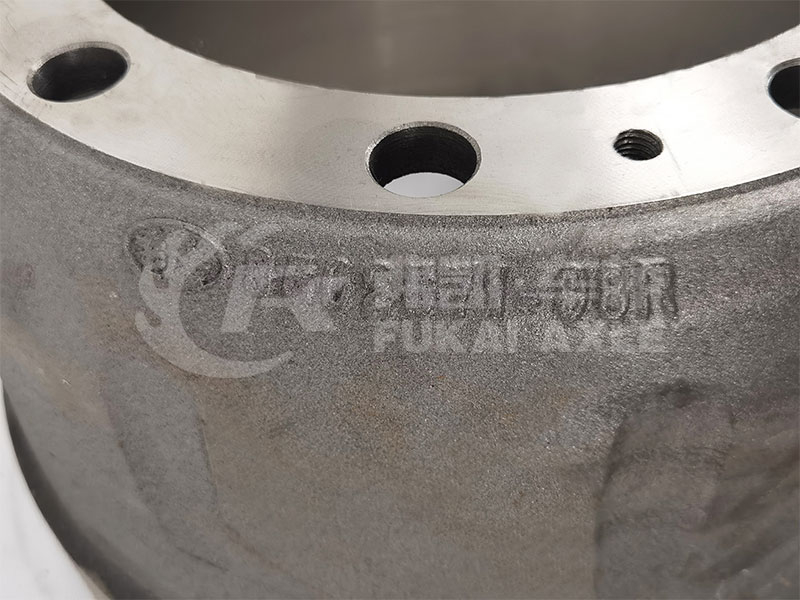

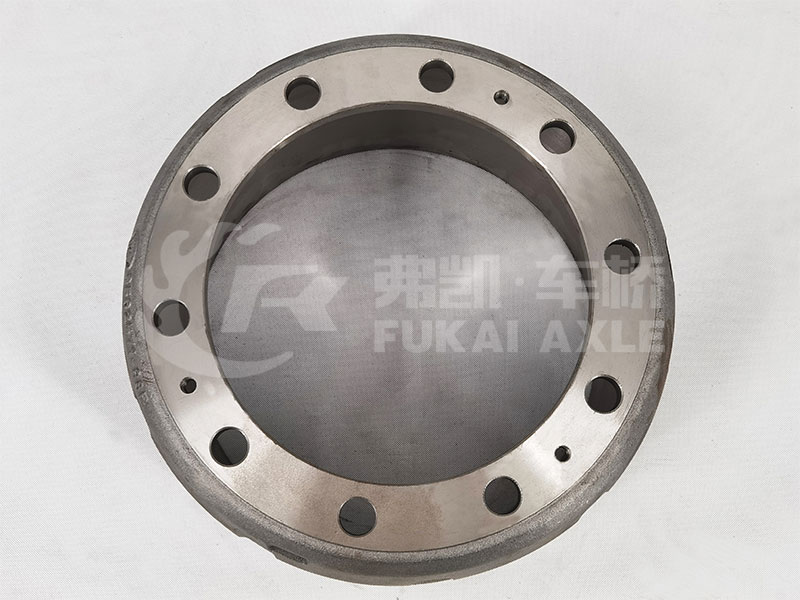

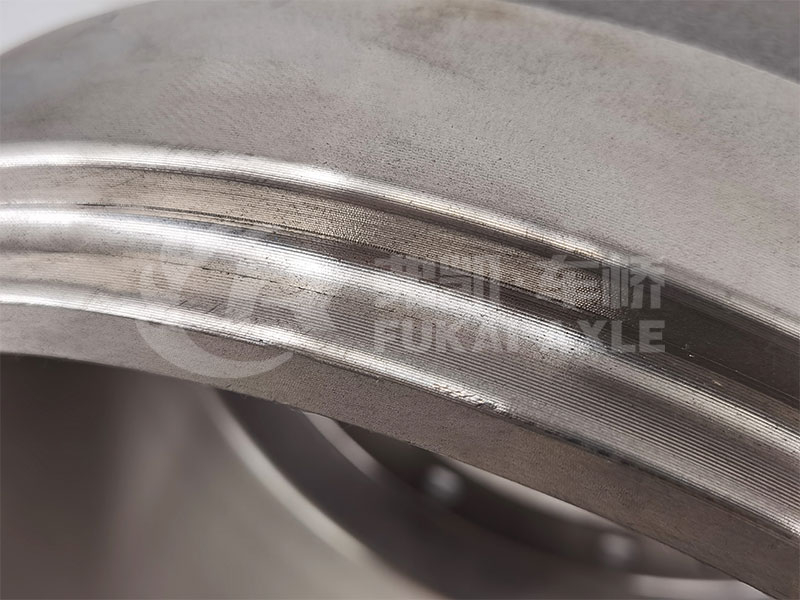

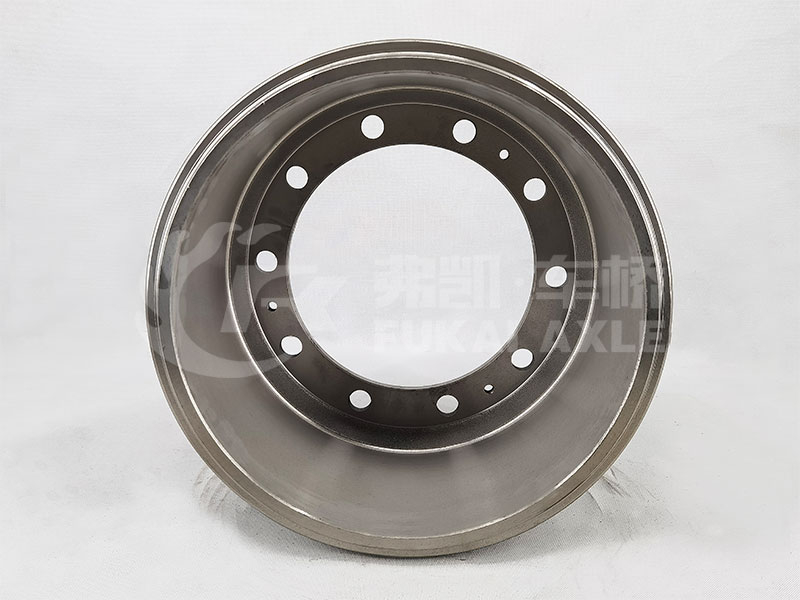

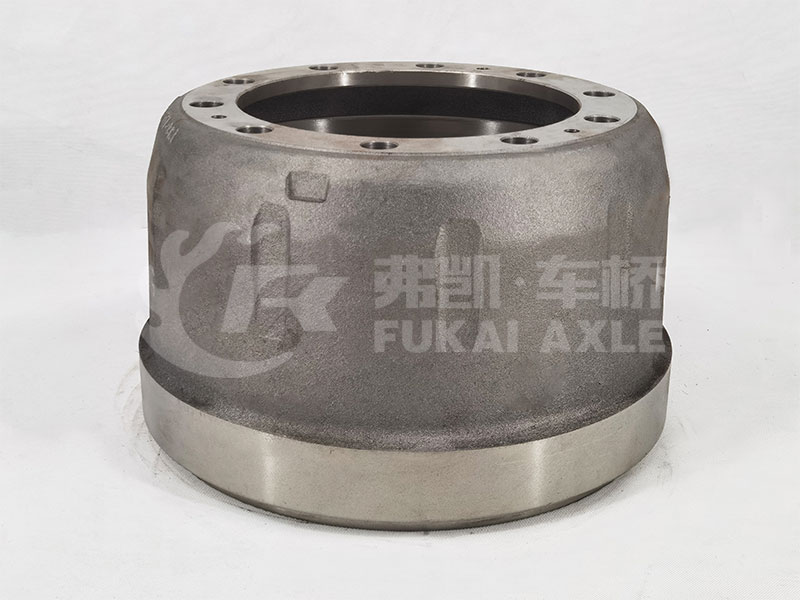

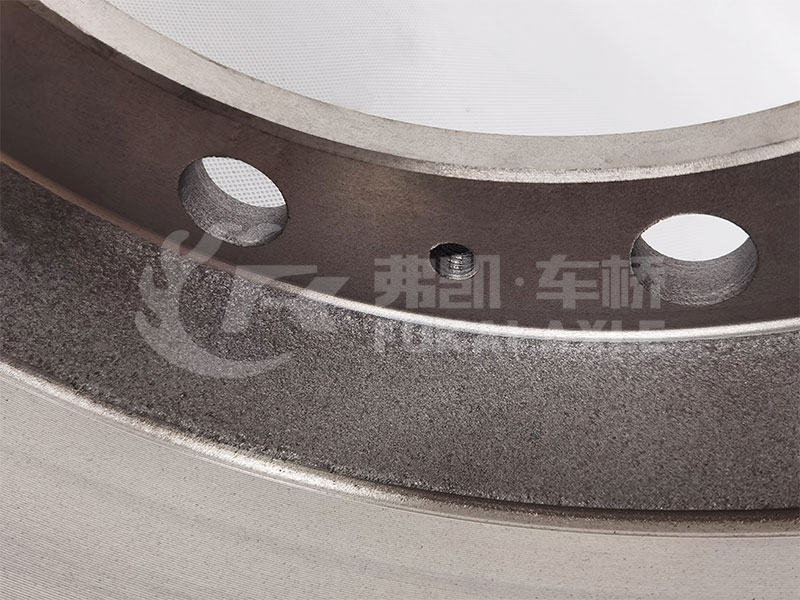

Rear Brake Drum for Pengxiang Auto Spare Parts W3502571B10D-R
How drum brakes work:
Drum brakes mainly consist of brake base plates, brake drums, brake shoes, return springs, compression wheels and other components.
When braking, by stepping on the pedal and using the lever principle, the force of the push rod acts on the brake master cylinder. After the pressure of the brake fluid is amplified and pushes the brake cylinder, the pistons at both ends of the brake cylinder will move at the same time. The thrust with equal force is directed to the shoe ends of the left and right brake shoes. The other ends of the two brake shoes are supported by the support rod. At this time, the two brake shoes expand outward and fit with the inner surface of the brake drum to form a friction to achieve braking purposes. Since the wheel is a rotating brake drum, the pressure acting on the brake shoes is asymmetrical, causing self-increasing and self-reducing force effects. The friction torque of the force-increasing brake shoe is 2 to 2.5 times that of the force-reducing brake shoe, which causes the wear degree of the two brake shoes to be different.
The function of the brake adjustment arm:
When the truck is driving, frequent braking will cause the brake shoes and brake drums to wear continuously, causing the gap between them to gradually increase; eventually, the push rod stroke of the brake chamber will become longer and the thrust force will decrease. Causes braking lag and reduced braking force. In order to ensure driving safety, it is necessary to ensure that there is an appropriate matching gap between the brake shoe and the brake drum. The adjusting arm is a device used to adjust and control the gap between the two.
How the brake adjustment arm works:
When designing the automatic adjustment arm, different brake clearance values will be preset according to different axle models. If the gap exceeds the limit during normal use, the brake adjustment arm will drive the internal one-way clutch mechanism to reduce the gap value by one gear when returning to the position after completing the braking action, so that the braking gap can be maintained at a level within the correct range.
Overview
Basic Info.
| Model NO. | W3502571B10D-R | Quality | High Quality; OEM Original |
| Size | OEM Standard Size | Part Name | Rear Brake Drum |
| MOQ | 1 PCS | Automatic | Automatic |
| Sample | Avaiblable | Main Market | Worldwide |
| Axle | Pengxiang Axle Parts | Condition | New |
| Certification | SGS | Transport Package | Standard Package |
| Specification | Standard Component | Origin | China |
| Truck Model | Sinotruk, Shacman, Foton Auman, FAW Jiefang, Dongfeng, Dongfeng Liuqi Balong, North BENZ( BEIBEN), C&C, JAC, etc. | |
| Product catalogue | Axle | Wheel Assembly |
| Differential Assembly | ||
| Main Reducer Assembly | ||
| Inner Ring Gear& Bracket | ||
| Basin Angle Gear/ Bevel Gear | ||
| Axle Shaft/ Half Shaft & Through Shaft | ||
| Axle Housing& Axle Assembly | ||
| Steering knuckle & Front Axle | ||
| Gear | ||
| Brake Drum& Wheel Hub | ||
| Flange | ||
| Bearing | ||
| Main Reducer Housing | ||
| Oil Seal Seat | ||
| Nut& Shim Series | ||
| Brake Backing Plate | ||
| Chassis Support Products | Leaf Spring Bracket | |
| Drop Arm Series | ||
| Bracket Series | ||
| Leaf Spring Shackle Series | ||
| Balanced Suspension Series | Balance Shaft Assembly | |
| Balance Shaft Housing | ||
| Axle Spring Seat | ||
| Thrust Rod | ||
| Balance Shaft Parts | ||
| Shock Absorber Series | Shock Absorber | |
| Shock Absorbing Airbag | ||
| Steering System | Power Steering Pump | |
| Power Steering Gear | ||
| Rubber Products | Oil Seal | |
| Rubber Support | ||
| Thrust Rod Rubber Core | ||
| Truck Belt | ||
| Engine support | ||
| Other | ||
| Clutch Series | Clutch Pressure Plate | |
| Clutch Disc | ||
| Flywheel Assembly | ||
| Flywheel Ring Gear | ||
| Adjusting Arm Series | ||
Product Advantages & Features
(1) It is made of national standard gray iron 250 and cast with carbon, silicon and manganese.
(2) Using lost foam processing technology.
(3) CNC center processing to ensure product accuracy.
(4) Dynamic balance test to ensure the concentricity of the brake drum.
quality assurance:
Vertical lathe machining center - CNC center - Boring machining center - High-precision grinder - Metallographic inspection - Automated three-coordinate inspection

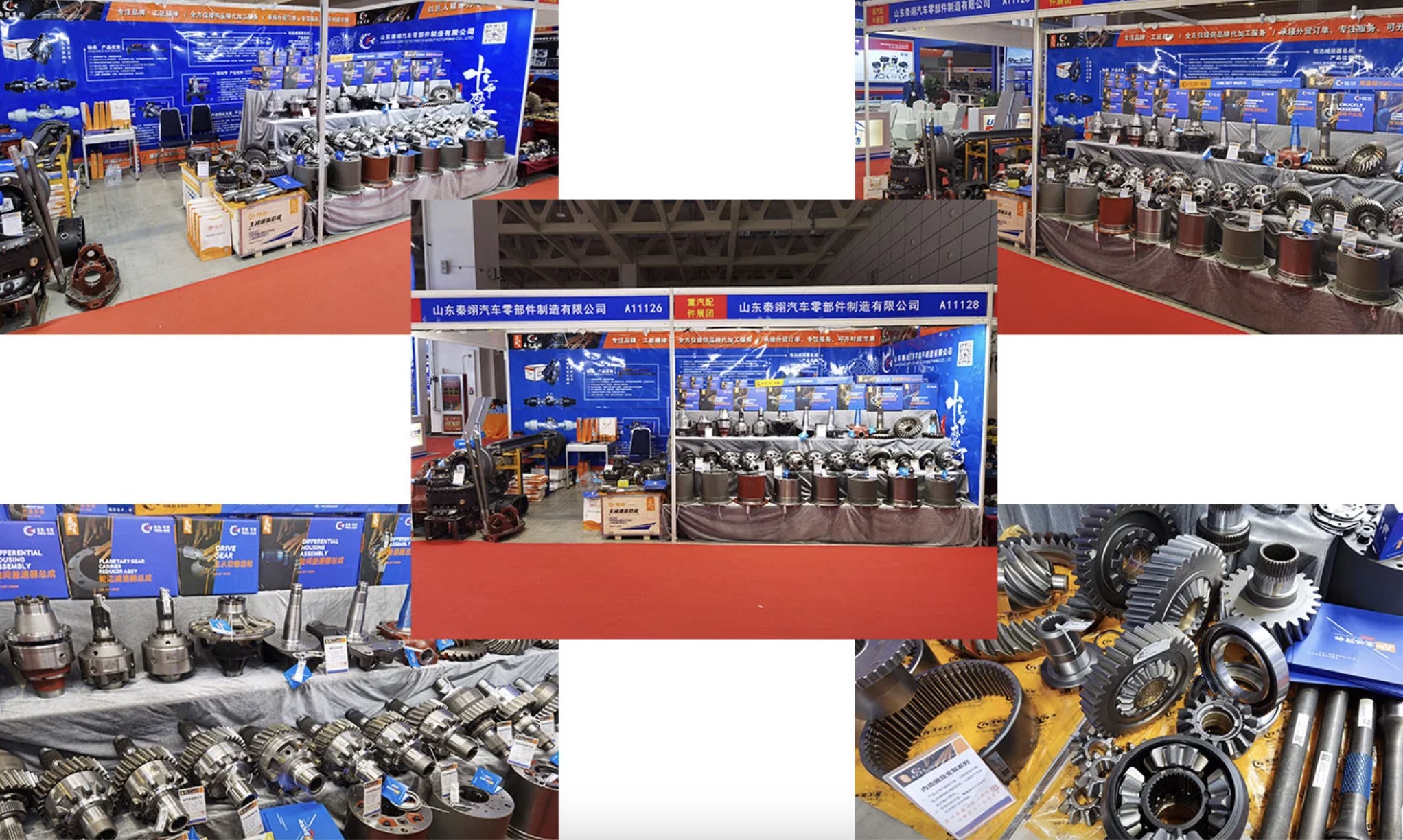

Factory Show
Company advantages
FAQ
Q1. What is your terms of packing?
We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.
Q2. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. What are your brand agency conditions and advantages?
After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.
Q4. How to guarantee your after-sales service?
Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.
Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.
Q5. How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter who they are.
Q6. What is your terms of payment?
By TT or LC. We'll show you the photos of the products and packages before you pay the balance.
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Certification
