Product Description

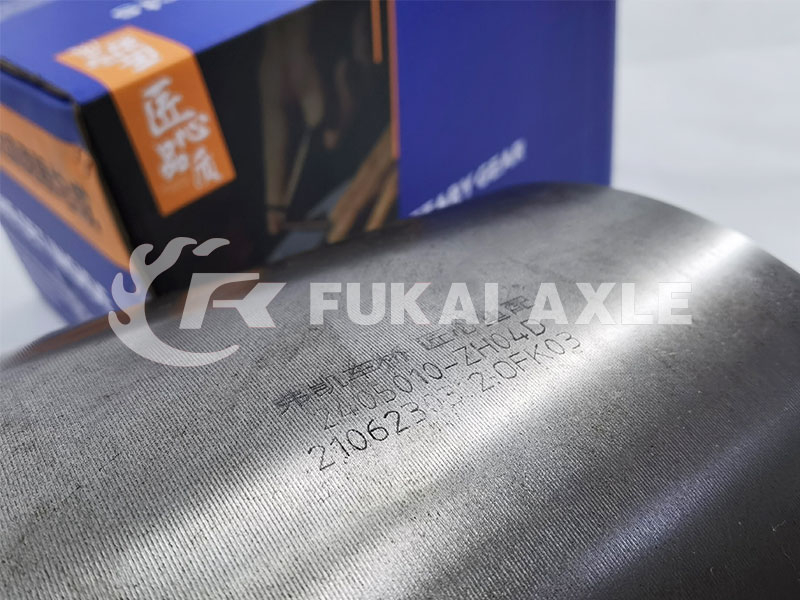

| Model NO. | 2405010-ZH04D | Application | Dongfeng T-lift, Dongfeng Dena Axle |
| Height | 290 mm | Internal Diameter | 268 mm |
| Number of Sun Gear Teeth | Internal Teeth: 40 Teeth; External Teeth: 19 Teeth | Number of Teeth of Internal Ring Gear | 56 Teeth |
| Number of Teeth of Planetary Gear | 18 Teeth | Speed Ratio | 3.947 |
| Origin | China | Sample | Avaiblable |
(1) The accuracy of oil seal, spigot, steel ring is 1/3 higher than that of the market wheel reducer. For example, the tolerance of Fukai oil seal is 0 ~ 8 wires, and the tolerance of ordinary wheel reducer is 0 ~ 15 wires.
(2) The disk surface is drilled through the reamer, and the position of the tire hole is checked with the inspection tool disk to ensure the consistency of the hole diameter and the perfection of concentricity.
(3) In order to prevent the possibility of oil leakage of 1/10000, the machining center adopts the processing technology of rough boring and fine boring for the shaft hole; The 10 threaded holes at the bottom of the wheel hub reducer housing are all blind holes (most of the wheel hub reducer housing on the market are through holes).
(4) When drilling the legs of the wheel rim planet carrier, in order to prevent the angle from being slanted when the hole is deep, which may reduce the service life of the planet carrier after assembling the wheel rim assembly, the wheel hub reducer housing of Fukai brand is drilled and positioned 2.5mm in the machining center first, and then the vertical drilling is completed (most brands of planet carriers are made directly at one time).
(5) After the wheel rim is formed, it will be polished one by one with metallographic instrument, and then inspect each product on delivery to ensure the stability of the material of each product.
(6) The gear, planetary shaft, planetary gasket, needle roller bearing, stabilizing pin and wheel edge screw equipped with the wheel reducer assembly are the original products, with fine appearance and reliable quality.
(7) Fukai brand wheel reducer assembly is equipped with repair kits required for maintenance (including circlips, adjusting gaskets, wheel oil plugs, sun gear gaskets, gloves, etc.)

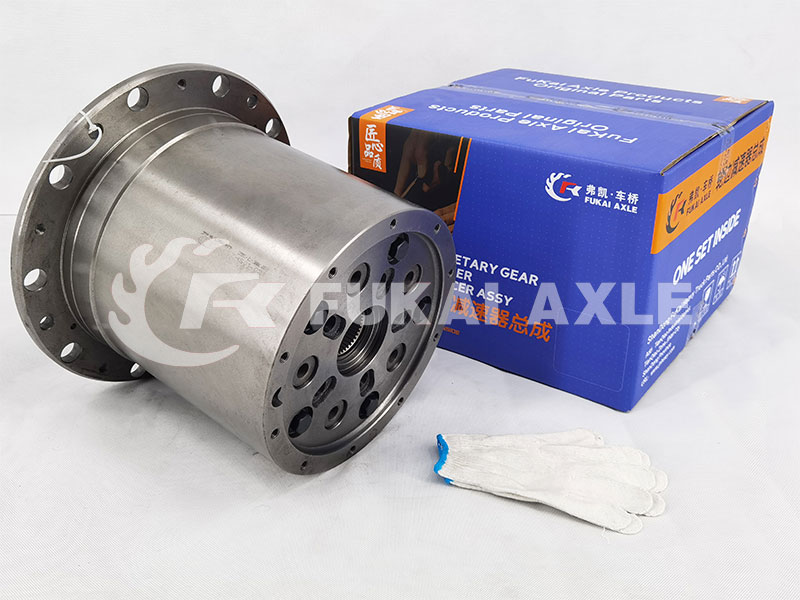

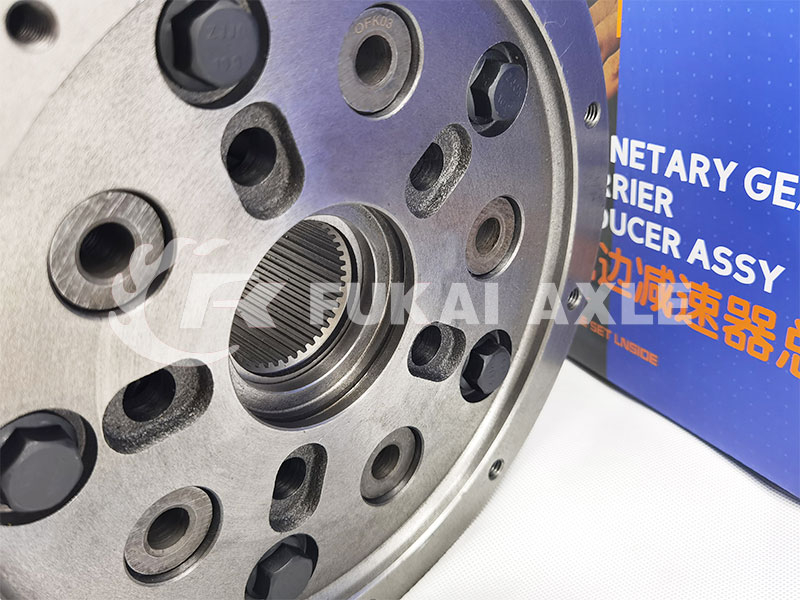

The wheel reducer is mainly composed of sun gear, planetary gear, ring gear and planetary gear carrier. Generally, the sun gear of the driving part is connected with the half shaft, the planetary gear carrier of the passive part is connected with the wheel, and the ring gear is connected with the axle housing. The wheel reducer is used to increase the driving force matching of the car to meet or modify the force of the entire transmission system. At present, the wheel reducer is a set of gear transmission device with speed reduction and torque increase to meet the matching needs of the whole transmission system. The power is transmitted from the engine to the main reducer of the front and rear axle through the clutch, transmission and transfer case, and then from the output end of the main reducer to the wheel reducer and wheels to drive the vehicle. In this process, the working principle of the wheel reducer is to transfer the speed and torque transmitted by the main reducer to the wheels after its speed reduction and torque increase, so the wheels can generate a large driving force under the reaction of ground adhesion. Thus, the stress of each part in front of the wheel reducer is reduced.
Q1.How about price of products?
The price is nogotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
Please provide the exact or approximate quantity, packing details, destination port or special requirements, so we could give you the price accordingly.
Q2.what is the products delivery time?
Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3.Do you test all your goods before delivery?
Yes,we have 100% test before delivery.
Q4.What is your terms of payment?
By TT or We'll show you the photos of the products and packages before you pay the balance.
Q5. Do you accept third party inspection?
Yes.we do
Q6. Are you a factory or trading company?
We are a factory integrating research, development, production and sales.
