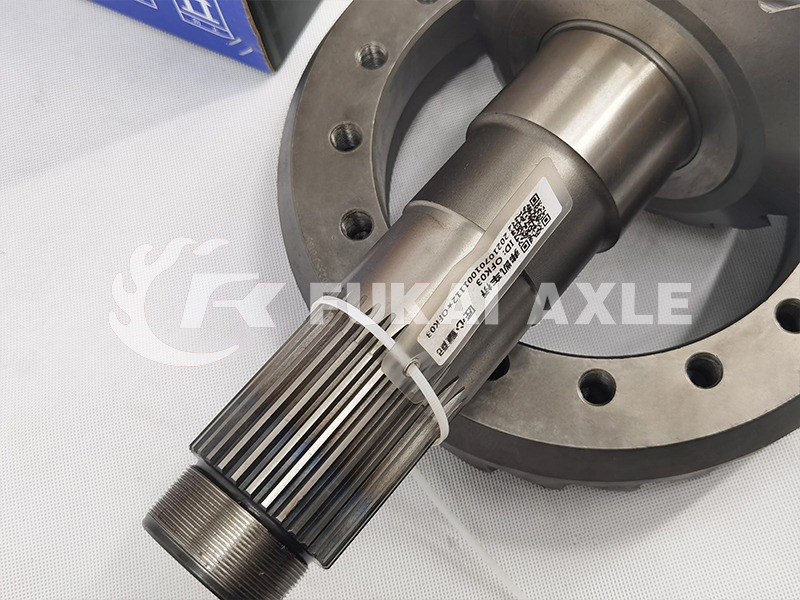

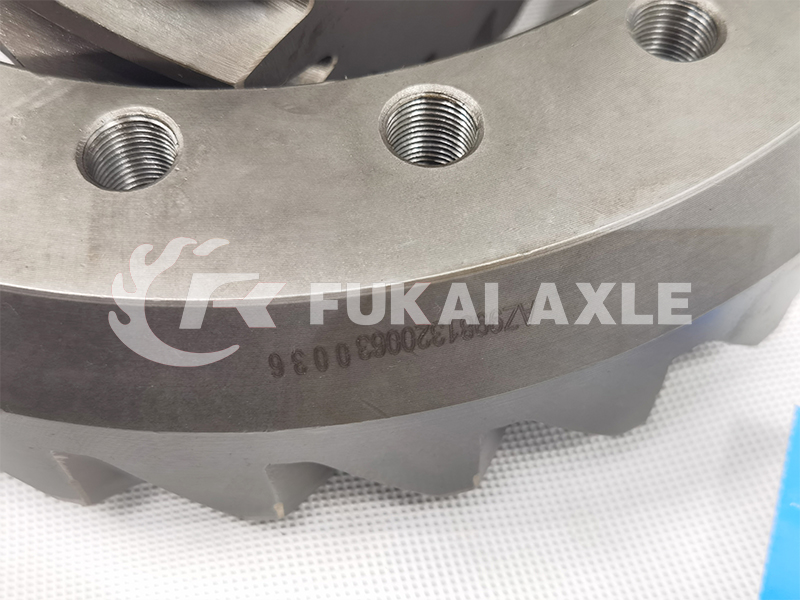

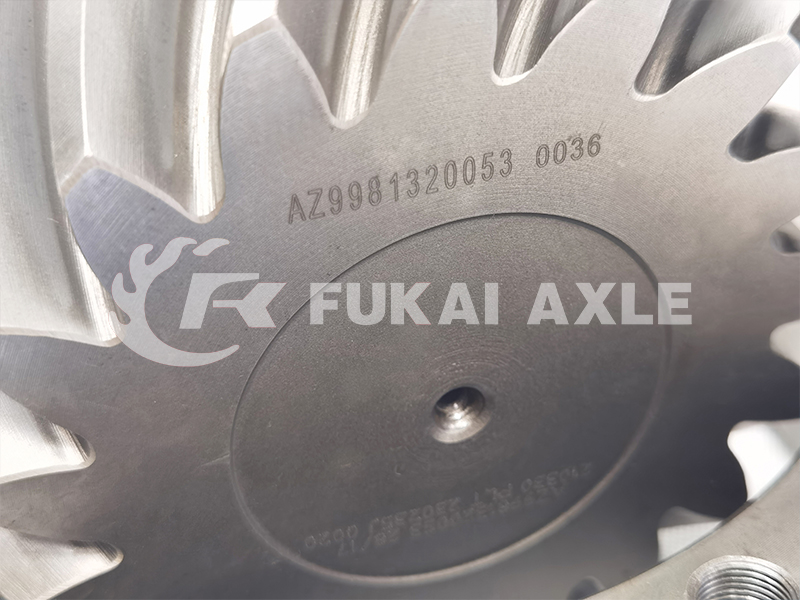

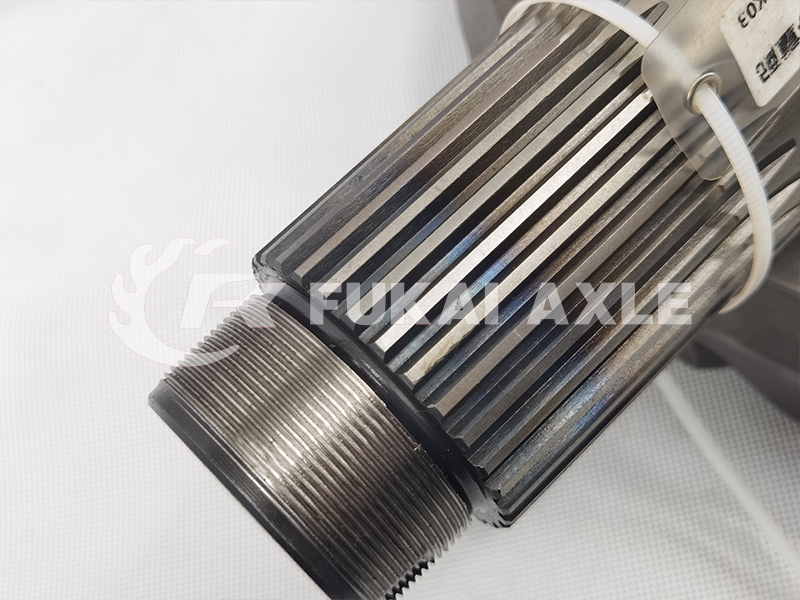

Basin Angle Gear For Sinotruk Steyr Truck Spare Parts AZ9981320153

Basin Angle Gear For Sinotruk Steyr Truck Spare Parts  AZ9981320153

Working principle of Basin Angle Gear：

Single reduction gear is a driving bevel gear (commonly known as angular gear) and a basin angle gear pair. The driving bevel gear is connected with the transmission shaft, rotates clockwise, sticks to its right side from the bevel gear, and rotates downward at the meshing point, which is consistent with the forward direction of the wheel. Due to the small diameter of the driving bevel gear and the large diameter of the bevel gear, the function of deceleration is achieved.

The double reduction has an additional intermediate transition gear.The left side of the driving bevel gear is meshed with the bevel gear of the intermediate gear. The bevel gear is coaxial with a spur gear with small diameter, and the spur gear is meshed with the driven gear. In this way, the intermediate gear rotates backward and the driven gear rotates forward. There is a two-stage deceleration process in the middle.

Due to the increase of axle volume, double reduction was mainly used in vehicles with low engine power in the past, mainly in construction machinery with low speed and high torque.

In the double reduction final drive, if the second-stage deceleration is carried out near the wheel, it actually constitutes an independent part at the two wheels, it is called wheel reducer. The advantage of this is that the torque transmitted by the half shaft can be reduced, which is conducive to reducing the size and quality of the half shaft. The wheel reducer can be planetary gear type or composed of a pair of cylindrical gear pairs. When the cylindrical gear pair is used for wheel side deceleration, the up-down position relationship between the wheel axis and the half shaft can be changed by adjusting the mutual position of the two gears. This kind of axle is called portal axle, which is often used for vehicles with special requirements for the high and low position of the axle.

According to the number of the main reducer transmission ratio, it can be divided into single-speed and double-speed.

Domestic cars basically adopt single speed main reducer with fixed transmission ratio. On the double reduction final drive, there are two transmission ratios for selection, and this main reducer actually acts as an auxiliary transmission.

Basic Info.

Main certification of bevel gear pair:

(1) Passed ISO/TS16949:2009 quality management system certification.

(2) Passed ISO/IEC17025:2005 certification.

(3) Certified by National Laboratory Accreditation Committee.

(4) "100 Auto Parts Suppliers" in China.

(5) China Machinery Top 500.

(6) National first-class measurement enterprise.

(7) National first-class physical and chemical enterprise.

Packaging & Shipping

Main Certification

(1) Host supporting products, made of 20CrMmti material.

(2) Heat treatment and tempering, the tooth root has sufficient strength and stronger impact resistance.

(3) Multi-purpose furnace carburizing processing and fine grinding processing technology can effectively reduce noise.

(4) Test platforms are inspected one by one, and each product is inspected out of the warehouse to ensure 100% quality stability of the product.

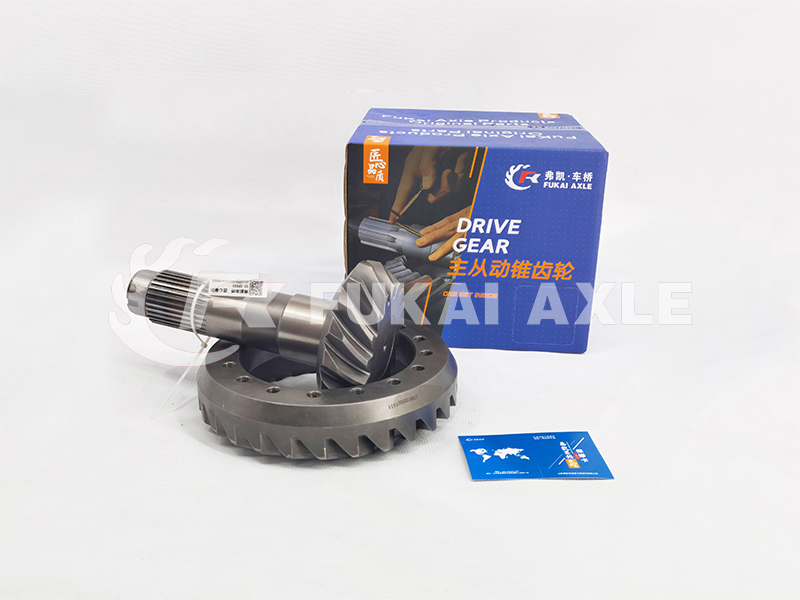

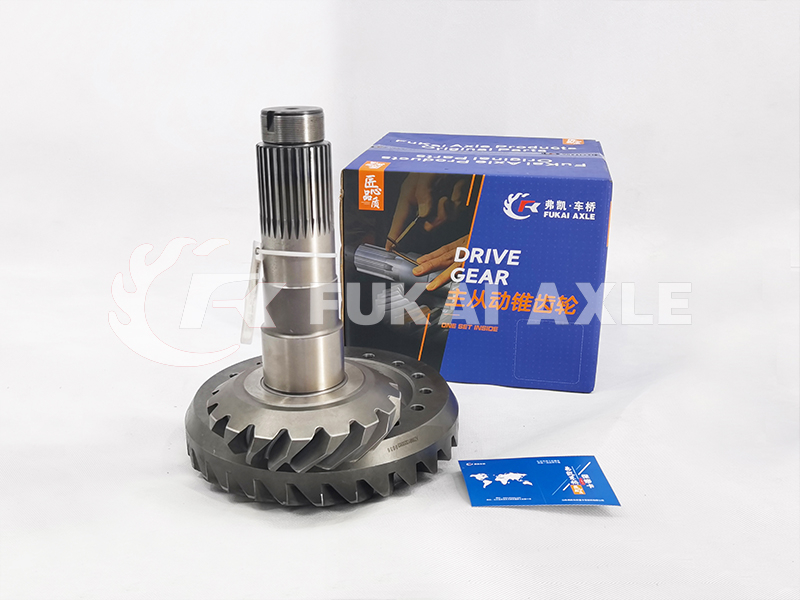

(5) Brand integrated carton, inner bag, and integral foam packaging, strong and beautiful.

Q1. What is your terms of packing?

We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.

Q2. What is your sample policy?

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. What are your brand agency conditions and advantages?

After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.

Q4. How to guarantee your after-sales service?

Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.

Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.

Q5. How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter who they are.

Q6. What is your terms of payment?

By TT or LC. We'll show you the photos of the products and packages before you pay the balance.

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
