Steering Knuckle Assembly For Sinotruk Steyr Truck Spare Parts 199112410057/199112410056/199112410058

Steering Knuckle Assembly For Sinotruk Steyr  Truck Spare Parts 199112410057/199112410056/199112410058

Product advantages & features

Tip: The function of the steering knuckle is to transmit and bear the load on the front of the car, support and drive the front wheel to rotate around the kingpin to turn the car. When the car is driving, it is subject to variable impact loads. Therefore, the steering knuckle is an important safety component of the car, and industry professionals around the world attach great importance to its safety features.

Introduction to the advantages of Fukai brand steering knuckle:

(1) The blank is made of 42CrMo alloy, which has high strength, good toughness, is not easy to break, and has better fatigue resistance.

(2) Through forging, defects such as looseness in the cast state produced during the smelting process of the blank are eliminated, the microstructure is optimized, and the complete metal streamlines are preserved, greatly improving the mechanical performance of the steering knuckle.

(3) Introduce a fully automatic production line (including equipment system, robot system, tool system, fixture system and online detection system), and strictly control dimensional accuracy and position accuracy to ensure 100% product qualification rate.

(4) The shaft is strengthened to improve the fatigue life of the steering knuckle, and rolling and medium-frequency quenching processes are used to eliminate residual compressive stress on the surface and improve the fatigue strength of the product.

(5) Press-fit composite metal steel backing sleeve to protect the steering knuckle pin and increase the service life of the steering knuckle.

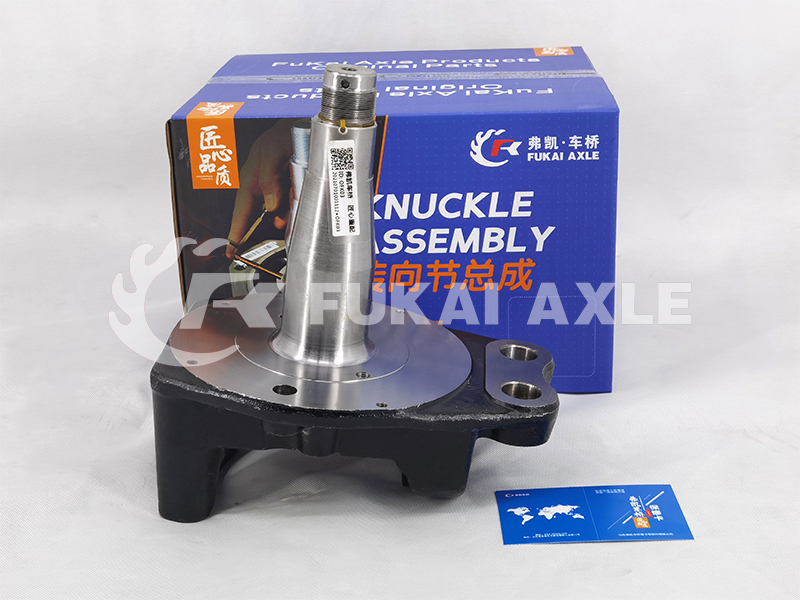

Branded packaging and integrated foam can well protect the integrity of product packaging during transportation.

Basic Info.

1.kingpin inclination angle

The function of kingpin alignment angle is to make the wheels automatically return to alignment. Generally, the wheel axis is not on the horizontal plane. For the convenience of explanation, it is assumed that the wheel axis is on the horizontal plane when the car runs in a straight line. When the car runs in a straight line, the intersection angle between the wheel axis and the kingpin is exactly this maximum.

The included angle between the wheel axis and the kingpin is constant during steering. When the wheel turns an angle, the wheel axis tilts downward away from the horizontal plane, resulting in the body lifting and the potential energy increasing. In this way, the gravity of the car itself has the effect of returning the steering wheel to the original middle position. When the vehicle is parked horizontally, the included angle between the kingpin axis and the ground vertical line in the transverse vertical plane of the vehicle is kingpin inclination angle.

2. Front wheel camber

If the wheel is installed exactly perpendicular to the road surface when the vehicle is empty, the Wheel inclination may occur due to bearing deformation of axle when it is fully loaded, which will accelerate the wear of the tires. In addition, the vertical reaction force of the road surface to the wheel along the axial component of the hub will make the hub press the small bearing at the outer end, increase the load of the small bearing at the outer end and the fastening nut of the hub, and reduce their service life. However, the camber angle should not be too large, otherwise the tire will be biased and worn. As shown in the left picture, when the car is parked horizontally, the included angle between the wheel plane and the vertical line of the ground is the front wheel camber in the horizontal vertical plane of the car.

3. Front wheel toe in

When the wheel has a camber angle, it is similar to a rolling cone when rolling, causing the wheels on both sides to roll outward. Due to the restraint of the tie rod and axle, the wheel will not roll outward, and the wheel will roll inward on the ground, thus increasing the wear of the tire. In order to avoid the adverse consequences caused by conical rolling effect, the two front wheels are properly deflected inward, that is, the front wheel toe in is formed.

Certificate

Q1. Are you a factory or trading company?
We are a factory integrating research, development, production and sales.

Q2. What are the advantages of your products?
We support product customization to meet customer needs for special products. We can strictly control the products from raw materials to production, processing, product quality inspectåion, delivery, packaging, etc., and provide customers with high-end products and the most advantageous prices.

Q3. How about products price?
We are a factory, all products are direct sale at factory price. For the same price, we will provide the best quality; for the same quality, we have the most advantageous price.

Q4. What is your terms of packing?
We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.

Q5. How to guarantee your after-sales service?
Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.
Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.

Q6. How can I accurately buy the products I need?
We need accurate product number, If you can't provide product number, you can send us your product picture, or tell us your truck model, engine name plate, and so on. we will
determine exactly what you need products.

Q7. Do you accept third party inspection?
Yes.we do

Q8. How about your delivery time?
Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q9. What are your brand agency conditions and advantages?
After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.

Q10. What is your terms of payment?
By TT or LC. We'll show you the photos of the products and packages before you pay the balance.
